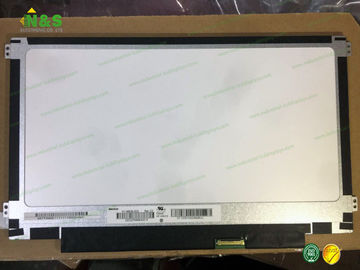

Normally White 11.6 Inch Innolux LCD Panel N116BGE-E32 ISO 9001 Approved

Normally White 11.6 Inch Innolux LCD Panel N116BGE-E32 ISO 9001 Approved

Normally White 11.6 Inch Innolux LCD Panel N116BGE-E32 ISO 9001 Approved

Product Details:

Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N116BGE-E32

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Size: 11.6 Inch Resolution: 1366×768
Outline: 268×168×3.4 Mm Contrast Ratio: 400:1 (Typ.)

Normally White N116BGE-E32 11.6 inch, 1366×768 Surface Antiglare, Hard coating (3H) Frequency 60Hz


N116BGE-E32 Basic Information

Panel Model N116BGE-E32
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,11.6 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

N116BGE-E32 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 135 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0625×0.1875 mm (H×V)
Pixel Pitch 0.1875×0.1875 mm (H×V)
Weight 205/215g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 256.125×144 mm (H×V)
Bezel Area 259.125×146.8 mm (H×V)
Outline Dimension 268×168 mm (H×V)
Outline Depth 3.4 (Max.) mm
Shape Style Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait Landscape type
Touch Panel Without

N116BGE-E32 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 220 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 3/7 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.49 (Max.)(5/13 points)
Sunlight Readable N


Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.


Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.


Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AT070TN90 Innolux 7.0" 800×480
PH030NA-04A Innolux 3.0" 240×400
EE090NA-01C Innolux 9.0" 1280×800
EE080NA-06A Innolux 8.0" 800×600
AT080TN60 Innolux 8.0" 800×480
EE070NA-01L Innolux 7.0" 1024×600
EE070NA-01D Innolux 7.0" 1024×600
AT070TN90 V.1 Innolux 7.0" 800×480
AT070TN00 V.1 Innolux 7.0" 480×234
AT050TN30 Innolux 5.0" 480×272
LW700AT6005 Innolux 7.0" 800×480
