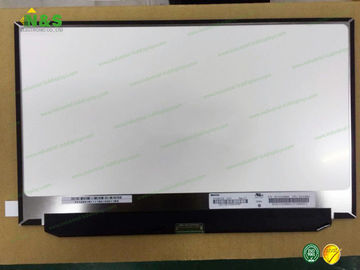

INNOLUX 12.5 Inch Lcd Panel Module High Brightness N125HCE-GN1 , 60Hz Frequency

INNOLUX 12.5 Inch Lcd Panel Module High Brightness N125HCE-GN1 , 60Hz Frequency

INNOLUX 12.5 Inch Lcd Panel Module High Brightness N125HCE-GN1 , 60Hz Frequency

Product Details:

Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N125HCE-GN1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Size: 12.5 Inch Resolution: 1920×1080
Active Area: 276.48×155.52 Mm Outline: 282.68×168.81×2.5 Mm
Surface: Antiglare Frequency: 60Hz

N125HCE-GN1 INNOLUX 12.5 inch 1920×1080 Normally Black for Active Area 276.48×155.52 mm



FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.



Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise

5. Sourcing line for different hard disks for different brands.



N125HCE-GN1 Basic Information

Panel Model N125HCE-GN1
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,12.5 inch, 1920×1080
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks eDP1.3; Narrow border


N125HCE-GN1 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 176 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.048×0.144 mm (H×V)
Pixel Pitch 0.144×0.144 mm (H×V)
Weight 162.4/170g (Typ./Max.)
Surface Antiglare
Active Area 276.48×155.52 mm (H×V)
Outline Dimension 282.68×168.81 mm (H×V)
Outline Depth 2.13/2.5 (Typ./Max.) mm
Shape Style Slim (PCBA Flat, Depth ≤3.2mm)
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without


N125HCE-GN1 Optical Features

Display Mode AAS, Normally Black, Transmissive
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Display Color 16.2M (6-bit + Hi-FRC)
Color Gamut 50% NTSC (CIE1931)
Response Time 14/11 (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M236HGE-P02 Innolux 23.6" 1920×1080
M215HGE-P03 Innolux 21.5" 1920×1080
V236H3-PS1 Innolux 23.6" 1920×1080
HE050NA-01F Innolux 5.0" 800×480
M236HGE-P01 Innolux 23.6" 1920×1080
M215HGE-P01 Innolux 21.5" 1920×1080
AT070TN90 Innolux 7.0" 800×480
PH030NA-04A Innolux 3.0" 240×400
EE090NA-01C Innolux 9.0" 1280×800
EE080NA-06A Innolux 8.0" 800×600
AT080TN60 Innolux 8.0" 800×480
