Product Details:
|
| Panel Size: | 14.0 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Outline: | 320.4×187.1×3 Mm | Contrast Ratio: | 500:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | tft lcd display,lcd display panel |
||

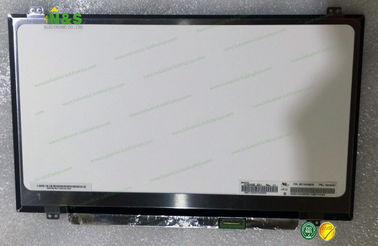

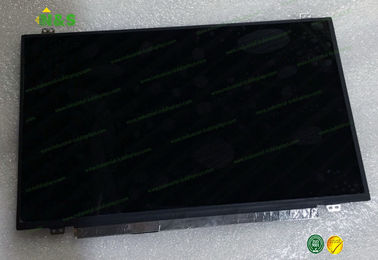

New and original N140HGE-EA1 Innolux 14.0 inch, 1920×1080 Active Area 309.14×173.89 mm Frequency 60Hz
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
N140HGE-EA1 Basic Information
| Panel Model | N140HGE-EA1 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,14.0 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
N140HGE-EA1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 157 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.054×0.161 mm (H×V) |
| Pixel Pitch | 0.161×0.161 mm (H×V) |
| Weight | 260/270g (Typ./Max.) |
| Surface | Antiglare (Haze 24%), Hard coating (3H) |
| Active Area | 309.14×173.89 mm (H×V) |
| Outline Dimension | 320.4×187.1 mm (H×V) |
| Outline Depth | 3.0 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N140HGE-EA1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M236HGE-P02 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P03 | Innolux | 21.5" | 1920×1080 |
| V236H3-PS1 | Innolux | 23.6" | 1920×1080 |
| HE050NA-01F | Innolux | 5.0" | 800×480 |
| M236HGE-P01 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P01 | Innolux | 21.5" | 1920×1080 |
| AT070TN90 | Innolux | 7.0" | 800×480 |
| PH030NA-04A | Innolux | 3.0" | 240×400 |
| EE090NA-01C | Innolux | 9.0" | 1280×800 |
| EE080NA-06A | Innolux | 8.0" | 800×600 |
| AT080TN60 | Innolux | 8.0" | 800×480 |
