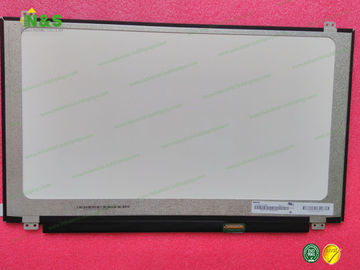

Innolux 15.6 Inch Lcd Screen Display Panel N156BGA-EB2 For Industrial Machine

Innolux 15.6 Inch Lcd Screen Display Panel N156BGA-EB2 For Industrial Machine

Innolux 15.6 Inch Lcd Screen Display Panel N156BGA-EB2 For Industrial Machine

Product Details:

Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N156BGA-EB2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Size: 15.6 Inch Resolution: 1366×768
Active Area: 344.232×193.536 Mm Outline: 359.5×206.5×3.2 Mm
Contrast Ratio: 600:1 (Typ.) Frequency: 60Hz

15.6 inch N156BGA-EB2 Innolux resolution 1366×768 Normally White Surface Glare (Haze 0%), Hard coating (3H)


N156BGA-EB2 Basic Information

Panel Model N156BGA-EB2
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,15.6 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -25 ~ 65 °C

N156BGA-EB2 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 100 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.084×0.252 mm (H×V)
Pixel Pitch 0.252×0.252 mm (H×V)
Weight 345/360g (Typ./Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 344.232×193.536 mm (H×V)
Outline Dimension 359.5×206.5 mm (H×V)
Outline Depth 3.0/3.2 (Typ.Max.) mm
Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait Landscape type
Touch Panel Without

N156BGA-EB2 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 220 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 3/7 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(13 points)
Sunlight Readable N


Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange

professional sales team to follow up your case.


Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
V236BJ1-P03 Innolux 23.6" 1366×768
PH035NA-01B Innolux 3.5" 320×480
PH040NA-01B Innolux 4.0" 480×800
PH045NA-01A Innolux 4.5" 480×854
PH045NA-01B Innolux 4.5" 480×854
PB050IA-01A Innolux 5.0" 540×960
ZE065NA-01B Innolux 6.5" 800×480
ZE050NA-08D Innolux 5.0" 640×480
N070ICN-PB1 Innolux 7.0" 800×1280
N156BGE-P41 Innolux 15.6" 1366×768
V500HJ1-PE8 Innolux 50" 1920×1080
V400HJ6-PE1 Innolux 40" 1920×1080
