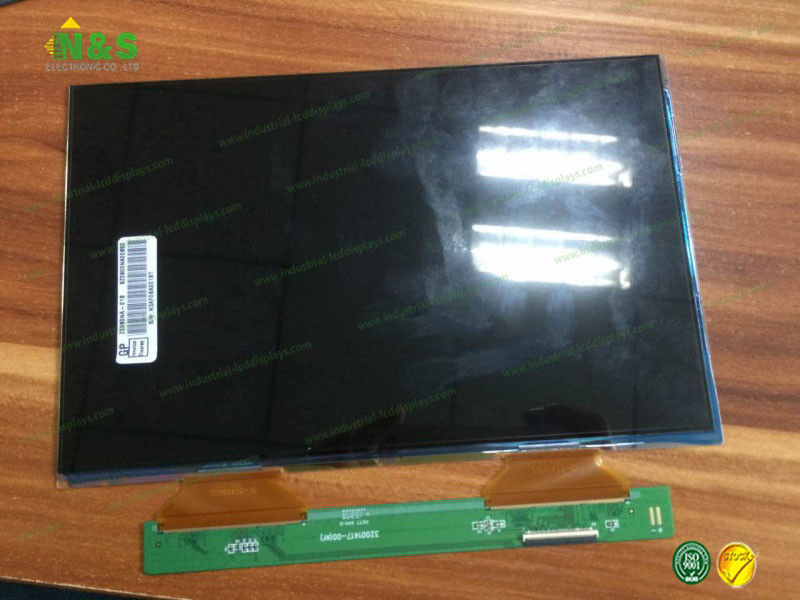

ZE090NA-01B INNOLUX 9.0 Inch Lcd Panel , Flat Panel Lcd Display Replacement

ZE090NA-01B INNOLUX 9.0 Inch Lcd Panel , Flat Panel Lcd Display Replacement
ZE090NA-01B INNOLUX 9.0 Inch Lcd Panel , Flat Panel Lcd Display Replacement

Large Image :  ZE090NA-01B INNOLUX 9.0 Inch Lcd Panel , Flat Panel Lcd Display Replacement

Product Details:
Place of Origin: Korea
Brand Name: INNOLUX
Certification: ISO9001
Model Number: ZE090NA-01B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

ZE090NA-01B INNOLUX 9.0 Inch Lcd Panel , Flat Panel Lcd Display Replacement

Description
Panel Size: 9.0 Inch Resolution: 1280×800
Panel Type: A-Si TFT-LCD Active Area: 193.92×121.2 Mm
Contrast Ratio: 700:1 (Typ.) Frequency: 60Hz
High Light:

tft lcd display

,

innolux lcd screen

ZE090NA-01B INNOLUX 9.0 inch resolution 1280×800 Normally White Industrial Lcd Screen Active Area 193.92×121.2 mm

ZE090NA-01B Basic Information

Panel Model ZE090NA-01B
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,9.0 inch, 1280×800
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks 3 in 1 FPC


ZE090NA-01B Mechanical Features

Dot Resolution 1280(RGB)×800 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 167 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0505×0.1515 mm (H×V)
Pixel Pitch 0.1515×0.1515 mm (H×V)
Weight TBD
Active Area 193.92×121.2 mm (H×V)
Outline Dimension 206.76×135.06 mm (H×V)
Outline Depth 1.43±0.15 mm
Landscape or Portrait Landscape type
Touch Panel Without


ZE090NA-01B Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 0 cd/m²
Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 70% NTSC (CIE1931)
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/50/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 12 o'clock
Transmissivity 3.39% (Typ.)(with Polarizer)
Sunlight Readable N


Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!



FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M236HGE-P02 Innolux 23.6" 1920×1080
M215HGE-P03 Innolux 21.5" 1920×1080
V236H3-PS1 Innolux 23.6" 1920×1080
HE050NA-01F Innolux 5.0" 800×480
M236HGE-P01 Innolux 23.6" 1920×1080
M215HGE-P01 Innolux 21.5" 1920×1080
AT070TN90 Innolux 7.0" 800×480
PH030NA-04A Innolux 3.0" 240×400
EE090NA-01C Innolux 9.0" 1280×800
EE080NA-06A Innolux 8.0" 800×600
AT080TN60 Innolux 8.0" 800×480
