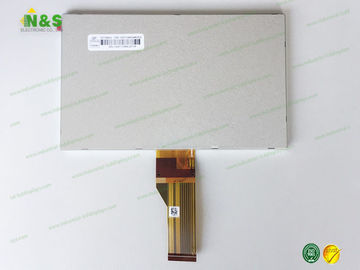

Innolux 7 Inch Lcd Panel P070BAG-CM1 High Resolution 1024×600 , RGB Vertical Stripe

Innolux 7 Inch Lcd Panel P070BAG-CM1 High Resolution 1024×600 , RGB Vertical Stripe
Innolux 7 Inch Lcd Panel P070BAG-CM1 High Resolution 1024×600 , RGB Vertical Stripe Innolux 7 Inch Lcd Panel P070BAG-CM1 High Resolution 1024×600 , RGB Vertical Stripe

Large Image :  Innolux 7 Inch Lcd Panel P070BAG-CM1 High Resolution 1024×600 , RGB Vertical Stripe

Product Details:
Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: P070BAG-CM1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

Innolux 7 Inch Lcd Panel P070BAG-CM1 High Resolution 1024×600 , RGB Vertical Stripe

Description
Panel Size: 7.0 Inch Resolution: 1024×600
Active Area: 154.214×85.92 Mm Outline: 164.9×100×5.1 Mm
Surface: Hard Coating
High Light:

tft lcd display

,

innolux lcd screen

Normally White 7.0 inch P070BAG-CM1 high resolution 1024×600 Surface Hard coating Contrast Ratio 800:1 (Typ.)



We can do for You:

1. Quality Guarantee:

100% original new Hard Disk for you.

2.Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3.Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

4.After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of hard disks to provide customers with effective advice.

We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

6. Competitive quotation:

Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.



P070BAG-CM1 Basic Information

Panel Model P070BAG-CM1
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,7.0 inch, 1024×600
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C


P070BAG-CM1 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 170 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0502×0.1432 mm (H×V)
Pixel Pitch 0.1506×0.1432 mm (H×V)
Weight 140g (Typ.)
Surface Hard coating
Active Area 154.214×85.92 mm (H×V)
Bezel Area 156.7×89.1 mm (H×V)
Outline Dimension 164.9×100 mm (H×V)
Outline Depth 4.8±0.3 mm
Landscape or Portrait Landscape type
Touch Panel Without


P070BAG-CM1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 500 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Dithering)
Color Gamut 70% NTSC (CIE1931)
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.310; Wy:0.330
White Variation 1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable N


FAQ:

1. Q: Are you a manufacturer or trading company?

A: We are a trading company who has been specializing in marketing LCD display for 6 years.

2. Q:What’s the quality of your products?

A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.

3. Q: What is your after-sale service?

A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

4. Q: What is your MOQ?

A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

5. Q: When will you make the delivery?

A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.

6. Q: what brand of screen could we handle?

A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M236HGE-P02 Innolux 23.6" 1920×1080
M215HGE-P03 Innolux 21.5" 1920×1080
V236H3-PS1 Innolux 23.6" 1920×1080
HE050NA-01F Innolux 5.0" 800×480
M236HGE-P01 Innolux 23.6" 1920×1080
M215HGE-P01 Innolux 21.5" 1920×1080
AT070TN90 Innolux 7.0" 800×480
PH030NA-04A Innolux 3.0" 240×400
EE090NA-01C Innolux 9.0" 1280×800
EE080NA-06A Innolux 8.0" 800×600
AT080TN60 Innolux 8.0" 800×480
