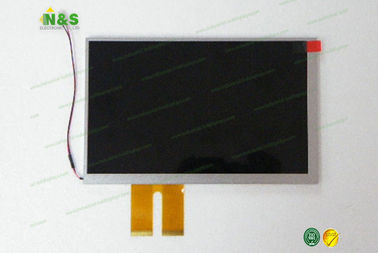

7.0 Inch AT070TN84 V.1 Innolux LCD Panel Transmissive Active Area 152.4×91.44 Mm

7.0 Inch AT070TN84 V.1 Innolux LCD Panel Transmissive Active Area 152.4×91.44 Mm
7.0 Inch AT070TN84 V.1 Innolux LCD Panel Transmissive Active Area 152.4×91.44 Mm

Large Image :  7.0 Inch AT070TN84 V.1 Innolux LCD Panel Transmissive Active Area 152.4×91.44 Mm

Product Details:
Place of Origin: Japan,Korea,Taiwan
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT070TN84 V.1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

7.0 Inch AT070TN84 V.1 Innolux LCD Panel Transmissive Active Area 152.4×91.44 Mm

Description
Panel Type: A-Si TFT-LCD Panel Model: AT070TN84 V.1
Active Area: 152.4×91.44 Mm Outline: 165×104×6.3 Mm
Surface: Antiglare
High Light:

tft lcd display

,

lcd display panel

7.0 inch AT070TN84 V.1 INNOLUX TN, Normally White, Transmissive Active Area 152.4×91.44 mm Surface Antiglare



AT070TN84 V.1 Basic Information

Panel Model AT070TN84 V.1
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,7.0 inch, 800×480
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 85 °C
Storage Temperature -30 ~ 85 °C


AT070TN84 V.1 Mechanical Features

Dot Resolution 800(RGB)×480 (WVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 133 PPI
Aspect Ratio 15:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0635×0.1905 mm (H×V)
Pixel Pitch 0.1905×0.1905 mm (H×V)
Weight TBD
Surface Antiglare
Active Area 152.4×91.44 mm (H×V)
Bezel Area 155.2×94.2 mm (H×V)
Outline Dimension 165×104 mm (H×V)
Outline Depth 5.5/6.3 (Typ./Max.) mm
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without


AT070TN84 V.1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.310; Wy:0.330
White Variation 1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable N


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CD040JN13 Innolux 4.0" 480×800
HE070IA-04M Innolux 7.0" 800×1280
M195FGE-P03 Innolux 19.5" 1600×900
M195FGE-P02 Innolux 19.5" 1600×900
HB050NA-07A Innolux 5.0" 640×960
F04013-04Z Innolux 4.0" 480×800
F05005-04U Innolux 5.0" 480×854
F05005-03U Innolux 5.0" 480×854
F05005-02U Innolux 5.0" 480×854
F05005-01U Innolux 5.0" 480×854
PP050IC-01B Innolux 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
              2. Layers of cartons
              3. Fragile Sign on top.
              4. Can be customized.
