Product Details:
|
| Panel Brand: | CMO | Panel Model: | N150P5-L02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.0 Inch |
| Resolution: | 1400×1050 | Frequency: | 60Hz |
| High Light: | tft lcd display,innolux lcd screen |
||

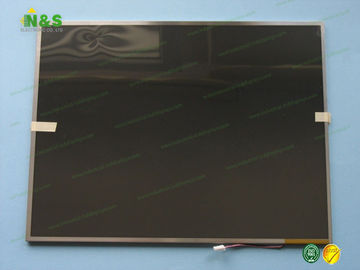

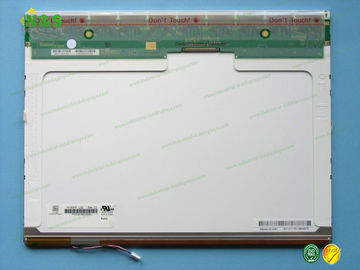

CMO N150P5-L02 Normally White TFT-LCD Module Active Area 304.5×228.375 mm Outline 317.3×242×6 mm new and original
N150P5-L02 Basic Information
| Panel Model | N150P5-L02 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1400×1050 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N150P5-L02 Mechanical Features
| Dot Resolution | 1400(RGB)×1050 (SXGA+) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 116 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2175 mm (H×V) |
| Pixel Pitch | 0.2175×0.2175 mm (H×V) |
| Weight | 530/550g (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 304.5×228.375 mm (H×V) |
| Bezel Area | 308.1×232.0 mm (H×V) |
| Outline Dimension | 317.3×242 mm (H×V) |
| Outline Depth | 5.7/6.0 (Typ./Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N150P5-L02 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V650HP1-PS6 Rev.C1 | Innolux | 65" | 1920×1080 |
| M220ZGE-P02 | Innolux | 22.0" | 1680×1050 |
| V420HJ2-P01 | Innolux | 42" | 1920×1080 |
| F05501-01Z | Innolux | 5.5" | 720×1280 |
| EE101IA-01D | Innolux | 10.1" | 1280×800 |
| HE070IA-02E | Innolux | 7.0" | 1280×800 |
| HE101NA-02C | Innolux | 10.1" | 1280×800 |
| ZE090NA-01B | Innolux | 9.0" | 1280×800 |
| HE080NA-04I | Innolux | 8.0" | 1024×768 |
| HE070NA-13C | Innolux | 7.0" | 1024×600 |
| HE070NA-13B | Innolux | 7.0" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
