Product Details:
|
| Panel Size: | 10.1 Inch | Resolution: | 1280×800 |
|---|---|---|---|
| Active Area: | 216.96×135.6 Mm | Contrast Ratio: | 800:1 (Typ.) |
| Display Colors: | 262K (6-bit) | Frequency: | 60Hz |
| High Light: | lcd display panel,innolux lcd screen |
||

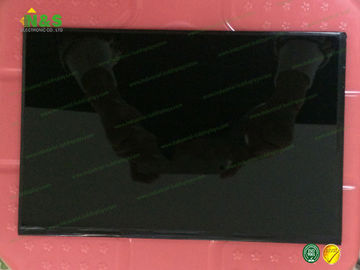

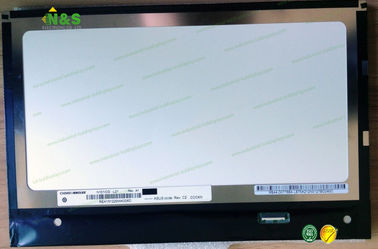

INNOLUX N101ICG-L21 Rev.A1 10.1 inch, 1280×800 Outline 227.42×147.69×4.85 mm Frequency 60Hz
What is Our Aavantage
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HE080IA-01D | Innolux | 8.0" | 1024×768 |
| HE070IA-04F | Innolux | 7.0" | 800×1280 |
| N173FGE-P23 | Innolux | 17.3" | 1600×900 |
| N116BGE-P32 | Innolux | 11.6" | 1366×768 |
| N116BGE-P42 | Innolux | 11.6" | 1366×768 |
| M220ZGE-P01 | Innolux | 22.0" | 1680×1050 |
| V236BJ1-P01 | Innolux | 23.6" | 1366×768 |
| CT024TN01 V.X | Innolux | 2.4" | 240×320 |
| M215HGE-P02 | Innolux | 21.5" | 1920×1080 |
| F03003-05L | Innolux | 3.0" | 320×240 |
| EE027NA-02A | Innolux | 2.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
N101ICG-L21 Rev.A1 Basic Information
| Panel Model | N101ICG-L21 Rev.A1 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
N101ICG-L21 Rev.A1 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Weight | 120/135g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 216.96×135.6 mm (H×V) |
| Bezel Area | 219.66×138.6 mm (H×V) |
| Outline Dimension | 227.42×147.69 mm (H×V) |
| Outline Depth | 2.16/4.85 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
