Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800×480 | Active Area: | 152.4×91.44 Mm |
| Surface: | Antiglare | Contrast Ratio: | 500:1 (Typ.) |
| High Light: | tft lcd display,lcd display panel |
||

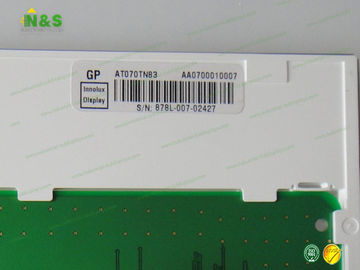

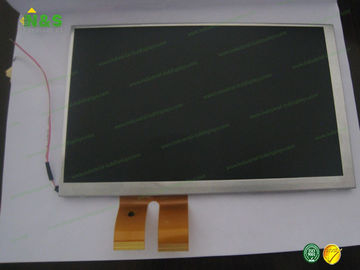

AT070TN83 Normally White 7.0 inch new and original 800×480 resolution Outline 165×104×5.8 mm Surface Antiglare
AT070TN83 Basic Information
| Panel Model | AT070TN83 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
AT070TN83 Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 130g (Typ.) |
| Surface | Antiglare |
| Active Area | 152.4×91.44 mm (H×V) |
| Bezel Area | 155.3×94.3 mm (H×V) |
| Outline Dimension | 165×104 mm (H×V) |
| Outline Depth | 5.5±0.3 mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AT070TN83 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
