Product Details:
|
| Resolution: | 1920×1080 | Panel Size: | 13.3 Inch |
|---|---|---|---|
| Surface: | Antiglare (Haze 1%) | Contrast Ratio: | 700:1 (Typ.) |
| Frequency: | 60Hz | ||
| High Light: | lcd display panel,innolux lcd screen |
||

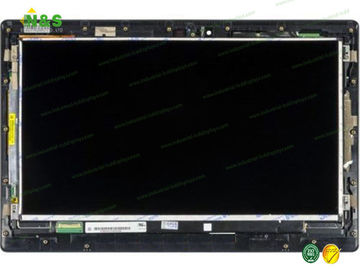

New and original N133HSG-WJ11 13.3 inch 1920×1080 TFT LCD Module NActive Area 293.76×165.24 mm
N133HSG-WJ1 Basic Information
| Panel Model | N133HSG-WJ1 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,13.3 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Dual panel touch assembly. For Asus TAICHI 31 |
N133HSG-WJ1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 166 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.051×0.153 mm (H×V) |
| Pixel Pitch | 0.153×0.153 mm (H×V) |
| Weight | 525g (Max.) |
| Surface | Antiglare (Haze 1%) |
| Active Area | 293.76×165.24 mm (H×V) |
| Outline Dimension | 337.2×224.81 mm (H×V) |
| Outline Depth | 5.27/5.33 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (Projected Capacitive Touch) |
| Panel Cover | With Cover Lens |
N133HSG-WJ1 Optical Features
| Display Mode | AAS, Normally Black, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| Sunlight Readable | N |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2 .Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P070ACZ-3Z1 | Innolux | 7.0" | 600×1024 |
| F03511-02U | Innolux | 3.5" | 320×480 |
| F05007-01Z | Innolux | 5.0" | 720×1280 |
| EE101IA-01C | Innolux | 10.1" | 1280×800 |
| EB070NA-09A | Innolux | 7.0" | 800×480 |
| V500DK2-PS1 | Innolux | 50" | 3840×2160 |
| 86A04310-00 | Innolux | 4.3" | 480×272 |
| HE070IA-04R | Innolux | 7.0" | 800×1280 |
| HE070IA-04E | Innolux | 7.0" | 800×1280 |
| HE080IA-01E | Innolux | 8.0" | 1024×768 |
| M200FGE-P02 | Innolux | 20.0" | 1600×900 |
