Product Details:
|
| Panel Size: | 15.4 Inch | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Resolution: | 1280×800 | Contrast Ratio: | 1000:1 (Typ.) |
| High Light: | tft lcd display,lcd display panel |
||

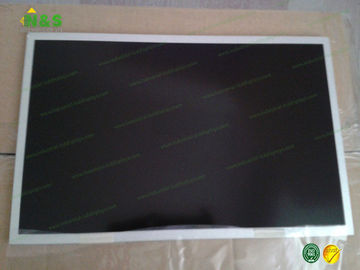

G154IJE-L02 a-Si TFT-LCD Module 15.4 inch, 1280×800 Normally White Normally Black Outline 352×230×9.2 mm
G154IJE-L02 Basic Information
| Panel Model | G154IJE-L02 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,15.4 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
G154IJE-L02 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 98 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.08625×0.25875 mm (H×V) |
| Pixel Pitch | 0.25875×0.25875 mm (H×V) |
| Weight | 920g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 331.2×207 mm (H×V) |
| Bezel Area | 334.5×210.3 mm (H×V) |
| Outline Dimension | 352×230 mm (H×V) |
| Outline Depth | 8.7±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
G154IJE-L02 Optical Features
| Display Mode | MVA, Normally Black, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
