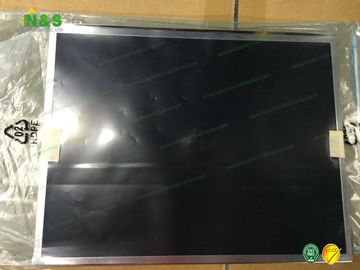

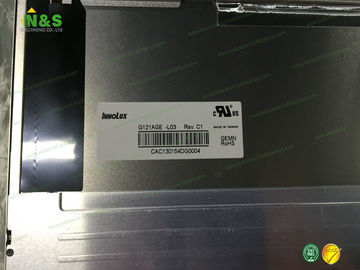

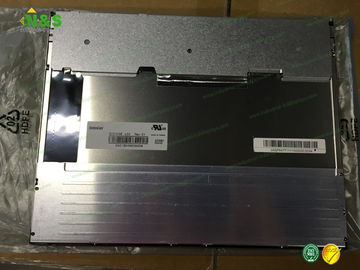

Hard Coating Innolux LCD Panel G121AGE-L03 12.1 Inch With 260.5×204×8.9 Mm Outline

Hard Coating Innolux LCD Panel G121AGE-L03 12.1 Inch With 260.5×204×8.9 Mm Outline
Hard Coating Innolux LCD Panel G121AGE-L03 12.1 Inch With 260.5×204×8.9 Mm Outline Hard Coating Innolux LCD Panel G121AGE-L03 12.1 Inch With 260.5×204×8.9 Mm Outline Hard Coating Innolux LCD Panel G121AGE-L03 12.1 Inch With 260.5×204×8.9 Mm Outline

Large Image :  Hard Coating Innolux LCD Panel G121AGE-L03 12.1 Inch With 260.5×204×8.9 Mm Outline

Product Details:
Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: G121AGE-L03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

Hard Coating Innolux LCD Panel G121AGE-L03 12.1 Inch With 260.5×204×8.9 Mm Outline

Description
Panel Type: A-Si TFT-LCD Panel Size: 12.1 Inch
Resolution: 800×600 Outline: 260.5×204×8.9 Mm
Contrast Ratio: 1500:1 (Typ.) Surface: Antiglare, Hard Coating (3H)
High Light:

tft lcd display

,

innolux lcd screen

New and original G121AGE-L03 12.1 inch Surface Antiglare, Hard coating (3H) Contrast Ratio 1500:1 (Typ.)



Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

G121AGE-L03 Basic Information

Panel Model G121AGE-L03
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,12.1 inch, 800×600
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 85 °C


G121AGE-L03 Mechanical Features

Dot Resolution 800(RGB)×600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 82 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.1025×0.3075 mm (H×V)
Pixel Pitch 0.3075×0.3075 mm (H×V)
Weight 506/530g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 246×184.5 mm (H×V)
Bezel Area 249.0×187.5 mm (H×V)
Outline Dimension 260.5×204 mm (H×V)
Outline Depth 8.4±0.5 mm
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


G121AGE-L03 Optical Features

Display Mode Super MVA, Normally Black, Transmissive
Brightness 450 cd/m² (Typ.)
Contrast Ratio 1500 : 1 (Typ.) (Transmissive)
Display Color 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut 50% NTSC (CIE1931)
Response Time 13/12 (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.40 (Typ./Max.)(9 points)
Sunlight Readable N


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HE080IA-01D Innolux 8.0" 1024×768
HE070IA-04F Innolux 7.0" 800×1280
N173FGE-P23 Innolux 17.3" 1600×900
N116BGE-P32 Innolux 11.6" 1366×768
N116BGE-P42 Innolux 11.6" 1366×768
M220ZGE-P01 Innolux 22.0" 1680×1050
V236BJ1-P01 Innolux 23.6" 1366×768
CT024TN01 V.X Innolux 2.4" 240×320
M215HGE-P02 Innolux 21.5" 1920×1080
F03003-05L Innolux 3.0" 320×240
EE027NA-02A Innolux 2.7" 320×240
