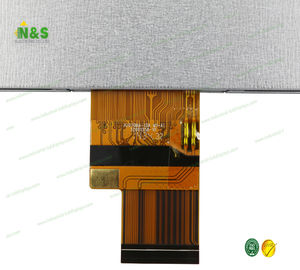

High Resolution HE070NA-13B TFT LCD Module 7.0 Inch , 153.6×90 Mm Active Area

High Resolution HE070NA-13B TFT LCD Module 7.0 Inch , 153.6×90 Mm Active Area
High Resolution HE070NA-13B TFT LCD Module 7.0 Inch , 153.6×90 Mm Active Area High Resolution HE070NA-13B TFT LCD Module 7.0 Inch , 153.6×90 Mm Active Area

Large Image :  High Resolution HE070NA-13B TFT LCD Module 7.0 Inch , 153.6×90 Mm Active Area

Product Details:
Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: HE070NA-13B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

High Resolution HE070NA-13B TFT LCD Module 7.0 Inch , 153.6×90 Mm Active Area

Description
Panel Type: A-Si TFT-LCD Panel Size: 7.0 Inch
Resolution: 1024×600 Active Area: 153.6×90 Mm
Outline: 160×101.1×1.23 Mm Surface: Glare (Haze 0%)
High Light:

tft lcd display

,

lcd display panel

HE070NA-13B TFT-LCD Module 7.0 inch inch high resolution 1024×600 Normally White Transmissive



HE070NA-13B Basic Information

Panel Model HE070NA-13B
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,7.0 inch, 1024×600
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks CABC


HE070NA-13B Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 169 PPI
Aspect Ratio 17:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.050×0.150 mm (H×V)
Pixel Pitch 0.150×0.150 mm (H×V)
Weight 38.6g (Typ.)
Surface Glare (Haze 0%)
Active Area 153.6×90 mm (H×V)
Outline Dimension 160×101.1 mm (H×V)
Outline Depth 1.23±0.15 mm
Landscape or Portrait Landscape type
Touch Panel Without


HE070NA-13B Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 0 cd/m²
Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut 70% NTSC (CIE1931)
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
Transmissivity 3.5% (Typ.)(with Polarizer)
Sunlight Readable N



Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
V650HP1-PS6 Rev.C1 Innolux 65" 1920×1080
M220ZGE-P02 Innolux 22.0" 1680×1050
V420HJ2-P01 Innolux 42" 1920×1080
F05501-01Z Innolux 5.5" 720×1280
EE101IA-01D Innolux 10.1" 1280×800
HE070IA-02E Innolux 7.0" 1280×800
HE101NA-02C Innolux 10.1" 1280×800
ZE090NA-01B Innolux 9.0" 1280×800
HE080NA-04I Innolux 8.0" 1024×768
HE070NA-13C Innolux 7.0" 1024×600
HE070NA-13B Innolux 7.0" 1024×600
