Product Details:
|
| Panel Type: | A-Si TFT-LCD | Display Mode: | 381.89×214.81 Mm |
|---|---|---|---|
| Active Area: | 17.3 Inch | Resolution: | 1920×1080 |
| Contrast Ratio: | 700:1 (Typ.) | Frequency: | 60Hz |
| High Light: | tft lcd display,innolux lcd screen |
||

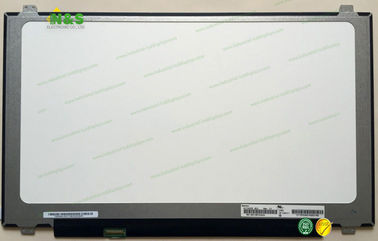

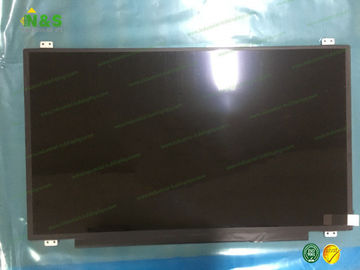

New and original N173HCE-E31 INNOLUX 17.3 inch 1920×1080 Surface Hard coating (3H) in stock
N173HCE-E31 Basic Information
| Panel Model | N173HCE-E31 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,17.3 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
N173HCE-E31 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 127 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0663×0.1989 mm (H×V) |
| Pixel Pitch | 0.1989×0.1989 mm (H×V) |
| Weight | 527/550g (Typ./Max.) |
| Surface | Hard coating (3H) |
| Active Area | 381.89×214.81 mm (H×V) |
| Outline Dimension | 399.5×230.45 mm (H×V) |
| Outline Depth | 3.57/4.0 (Typ./Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N173HCE-E31 Optical Features
| Display Mode | AAS, Normally Black, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HE080IA-01D | Innolux | 8.0" | 1024×768 |
| HE070IA-04F | Innolux | 7.0" | 800×1280 |
| N173FGE-P23 | Innolux | 17.3" | 1600×900 |
| N116BGE-P32 | Innolux | 11.6" | 1366×768 |
| N116BGE-P42 | Innolux | 11.6" | 1366×768 |
| M220ZGE-P01 | Innolux | 22.0" | 1680×1050 |
| V236BJ1-P01 | Innolux | 23.6" | 1366×768 |
| CT024TN01 V.X | Innolux | 2.4" | 240×320 |
| M215HGE-P02 | Innolux | 21.5" | 1920×1080 |
| F03003-05L | Innolux | 3.0" | 320×240 |
| EE027NA-02A | Innolux | 2.7" | 320×240 |
