Product Details:
|
| Panel Size: | 13.3 Inch | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Resolution: | 1920×1080 | Active Area: | 293.76×165.24 Mm |
| Outline: | 305.35×193.77×3 Mm | Frequency: | 60Hz |
| High Light: | tft lcd display,lcd display panel |
||

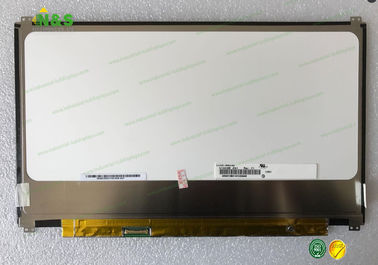

N133HSE-EA3 13.3 inch TFT-LCD Module Resolution 1920×1080 Outline 305.35×193.77×3 mm Frequency 60Hz
N133HSE-EA3 Basic Information
| Panel Model | N133HSE-EA3 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,13.3 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N133HSE-EA3 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 166 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.051×0.153 mm (H×V) |
| Pixel Pitch | 0.153×0.153 mm (H×V) |
| Weight | 245/260g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 293.76×165.24 mm (H×V) |
| Outline Dimension | 305.35×193.77 mm (H×V) |
| Outline Depth | 2.85/3.0 (Typ./Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N133HSE-EA3 Optical Features
| Display Mode | AAS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.43 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
