Product Details:
|
| Resolution: | 1920×1080 | Panel Size: | 11.6 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Active Area: | 256.32×144.18 Mm |
| Contrast Ratio: | 700:1 (Typ.) | Frequency: | 60Hz |
| High Light: | lcd display panel,innolux lcd screen |
||

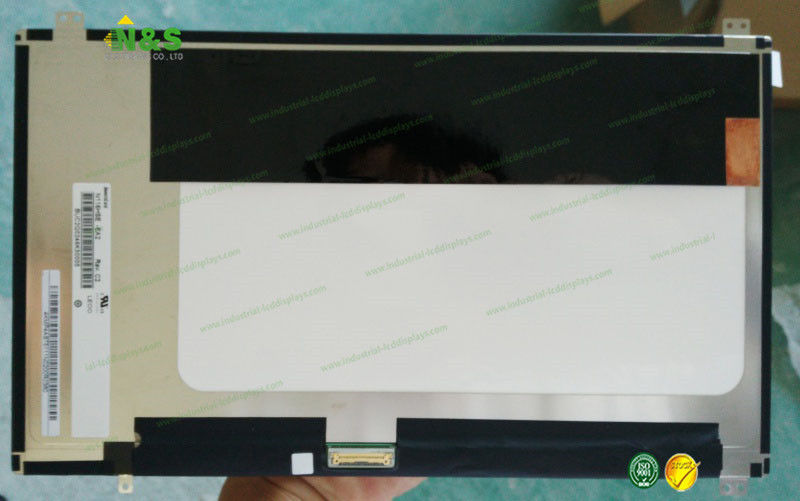

N116HSE-EA2 INNOLUX 11.6 inch 1920×1080 Display Mode AAS, Normally Black, Transmissive Frequency 60Hz
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AT070TN90 | Innolux | 7.0" | 800×480 |
| PH030NA-04A | Innolux | 3.0" | 240×400 |
| EE090NA-01C | Innolux | 9.0" | 1280×800 |
| EE080NA-06A | Innolux | 8.0" | 800×600 |
| AT080TN60 | Innolux | 8.0" | 800×480 |
| EE070NA-01L | Innolux | 7.0" | 1024×600 |
| EE070NA-01D | Innolux | 7.0" | 1024×600 |
| AT070TN90 V.1 | Innolux | 7.0" | 800×480 |
| AT070TN00 V.1 | Innolux | 7.0" | 480×234 |
| AT050TN30 | Innolux | 5.0" | 480×272 |
| LW700AT6005 | Innolux | 7.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
N116HSE-EA2 Basic Information
| Panel Model | N116HSE-EA2 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,11.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N116HSE-EA2 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 190 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0445×0.1335 mm (H×V) |
| Pixel Pitch | 0.1335×0.1335 mm (H×V) |
| Weight | 210/220g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 256.32×144.18 mm (H×V) |
| Outline Dimension | 268×157.35 mm (H×V) |
| Outline Depth | 2.7/5.15mm (Typ./Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N116HSE-EA2 Optical Features
| Display Mode | AAS, Normally Black, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
