Product Details:
|
Panel Type: | A-Si TFT-LCD | Panel Size: | 13.3 Inch |
---|---|---|---|
Resolution: | 1600×900 | Contrast Ratio: | 500:1 (Typ.) |
Display Colors: | 262K (6-bit) | Frequency: | 60Hz |
High Light: | tft lcd display,innolux lcd screen |

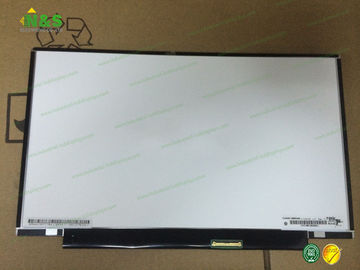

Normally White N133FGE-L31 TFT LCD Module 13.3 inch,resolution 1600×900 Surface Antiglare (Haze 14%)
N133FGE-L31 Basic Information
Panel Model | N133FGE-L31 |
Panel Brand | CHIMEI INNOLUX |
Descrition | a-Si TFT-LCD ,13.3 inch, 1600×900 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
N133FGE-L31 Mechanical Features
Dot Resolution | 1600(RGB)×900 (HD+) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 138 PPI |
Aspect Ratio | 16:9 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.06125×0.18375 mm (H×V) |
Pixel Pitch | 0.18375×0.18375 mm (H×V) |
Weight | 200/210g (Typ./Max.) |
Surface | Antiglare (Haze 14%) |
Active Area | 294×165.375 mm (H×V) |
Outline Dimension | 306.3×188.2 mm (H×V) |
Outline Depth | 2.48/2.68 (Typ./Max.) mm |
Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
Holes & Brackets | Without |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
N133FGE-L31 Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
Display Color | 262K (6-bit) |
Response Time | 3/7 (Typ.)(Tr/Td) |
Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.43 (Max.)(5 points) |
Sunlight Readable | N |
We can do for You:
1.Quality Guarantee:
100% original new Hard Disk for you.
2.Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3.Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4.After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
HE080IA-01D | Innolux | 8.0" | 1024×768 |
HE070IA-04F | Innolux | 7.0" | 800×1280 |
N173FGE-P23 | Innolux | 17.3" | 1600×900 |
N116BGE-P32 | Innolux | 11.6" | 1366×768 |
N116BGE-P42 | Innolux | 11.6" | 1366×768 |
M220ZGE-P01 | Innolux | 22.0" | 1680×1050 |
V236BJ1-P01 | Innolux | 23.6" | 1366×768 |
CT024TN01 V.X | Innolux | 2.4" | 240×320 |
M215HGE-P02 | Innolux | 21.5" | 1920×1080 |
F03003-05L | Innolux | 3.0" | 320×240 |
EE027NA-02A | Innolux | 2.7" | 320×240 |
