Product Details:
|
| Panel Size: | 13.3 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Active Area: | 293.76×165.24 Mm | Outline: | 305.35×187.82×2.85 Mm |
| Display Mode: | AAS, Normally Black, Transmissive | ||
| High Light: | tft lcd display,innolux lcd screen |
||

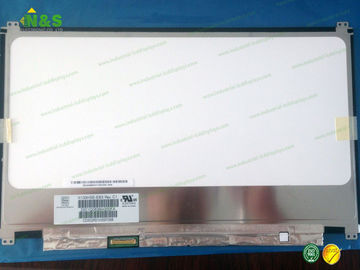

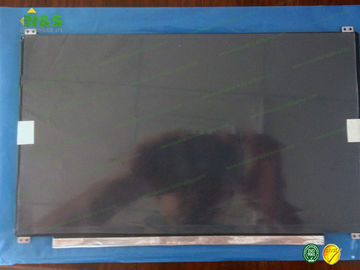

Normally Black 13.3 inch N133HSE-EB3 high resolution 1920×1080 Response Time 14/11 (Typ.)(Tr/Td) Frequency 60Hz
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
N133HSE-EB3 Basic Information
| Panel Model | N133HSE-EB3 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,13.3 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N133HSE-EB3 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 166 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.051×0.153 mm (H×V) |
| Pixel Pitch | 0.153×0.153 mm (H×V) |
| Weight | 245/260g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 293.76×165.24 mm (H×V) |
| Outline Dimension | 305.35×187.82 mm (H×V) |
| Outline Depth | 2.69/2.85 (Typ./Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N133HSE-EB3 Optical Features
| Display Mode | AAS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.43 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
N133HSE-EB3 Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Total Power Consumption | 5.77W (Max.) |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M236HGE-P02 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P03 | Innolux | 21.5" | 1920×1080 |
| V236H3-PS1 | Innolux | 23.6" | 1920×1080 |
| HE050NA-01F | Innolux | 5.0" | 800×480 |
| M236HGE-P01 | Innolux | 23.6" | 1920×1080 |
| M215HGE-P01 | Innolux | 21.5" | 1920×1080 |
| AT070TN90 | Innolux | 7.0" | 800×480 |
| PH030NA-04A | Innolux | 3.0" | 240×400 |
| EE090NA-01C | Innolux | 9.0" | 1280×800 |
| EE080NA-06A | Innolux | 8.0" | 800×600 |
| AT080TN60 | Innolux | 8.0" | 800×480 |
