High Brightness N133BGE-EAB Tft Lcd Panel , 13.3 Inch Innolux Lcd Display

High Brightness N133BGE-EAB Tft Lcd Panel , 13.3 Inch Innolux Lcd Display
High Brightness N133BGE-EAB Tft Lcd Panel , 13.3 Inch Innolux Lcd Display

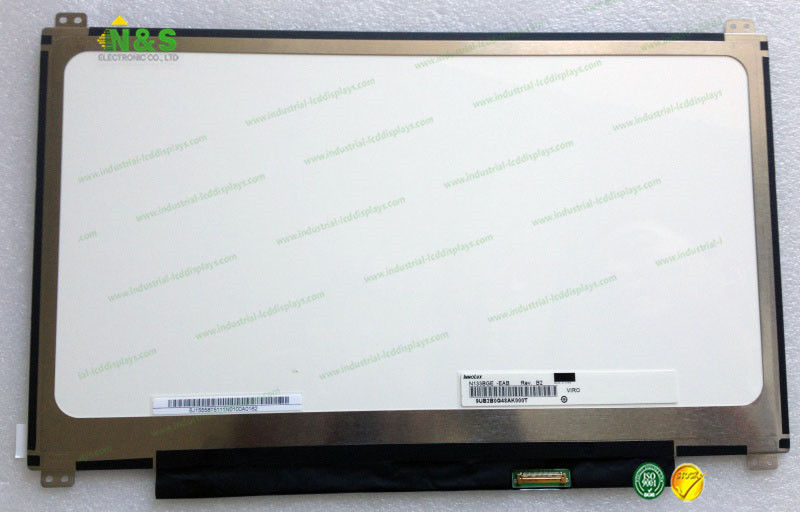

Large Image :  High Brightness N133BGE-EAB Tft Lcd Panel , 13.3 Inch Innolux Lcd Display

Product Details:
Place of Origin: Korea
Brand Name: IVO
Certification: ISO9001
Model Number: N133BGE-EAB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

High Brightness N133BGE-EAB Tft Lcd Panel , 13.3 Inch Innolux Lcd Display

Description
Panel Type: A-Si TFT-LCD Active Area: 293.42×164.97 Mm
Outline: 306.3×195.2×3 Mm Frequency: 60Hz
Contrast Ratio: 500:1 (Typ.) Surface: Antiglare, Hard Coating (3H)
High Light:

tft lcd display

,

lcd display panel

N133BGE-EAB Normally White 13.3 inch 1366×768 Active Area 293.42×164.97 mm Surface Antiglare, Hard coating (3H)



Our Company Strength in LCD Screen Sourcing:

1.  ISO9001 certificated, Factory Direct Supplied

2. Competitive Price and Short Lead-time

3. Professional Team with Rich Experiences in LCD screen international trade communication.

4. Small MOQ Support & Fast Response to Customers

5. Long Product Life Time

6. 1 Year warranty for our LCD screen replacements.



Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.



N133BGE-EAB Basic Information

Panel Model N133BGE-EAB
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,13.3 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C


N133BGE-EAB Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 118 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0716×0.2148 mm (H×V)
Pixel Pitch 0.2148×0.2148 mm (H×V)
Weight 230/250g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 293.42×164.97 mm (H×V)
Bezel Area 296.42×167.97 mm (H×V)
Outline Dimension 306.3×195.2 mm (H×V)
Outline Depth 2.8/3.0 (Typ./Max.) mm
Shape Style Slim (PCBA Flat, Depth ≤3.2mm)
Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait Landscape type
Touch Panel Without


N133BGE-EAB Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 8/8 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.11/1.25 (Typ./Max.)(9 points)
Sunlight Readable N


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AT070TN90 Innolux 7.0" 800×480
PH030NA-04A Innolux 3.0" 240×400
EE090NA-01C Innolux 9.0" 1280×800
EE080NA-06A Innolux 8.0" 800×600
AT080TN60 Innolux 8.0" 800×480
EE070NA-01L Innolux 7.0" 1024×600
EE070NA-01D Innolux 7.0" 1024×600
AT070TN90 V.1 Innolux 7.0" 800×480
AT070TN00 V.1 Innolux 7.0" 480×234
AT050TN30 Innolux 5.0" 480×272
LW700AT6005 Innolux 7.0" 800×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
