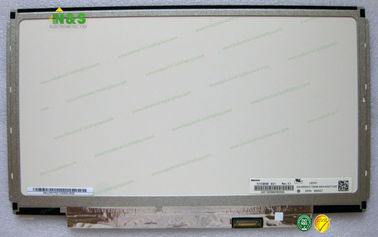

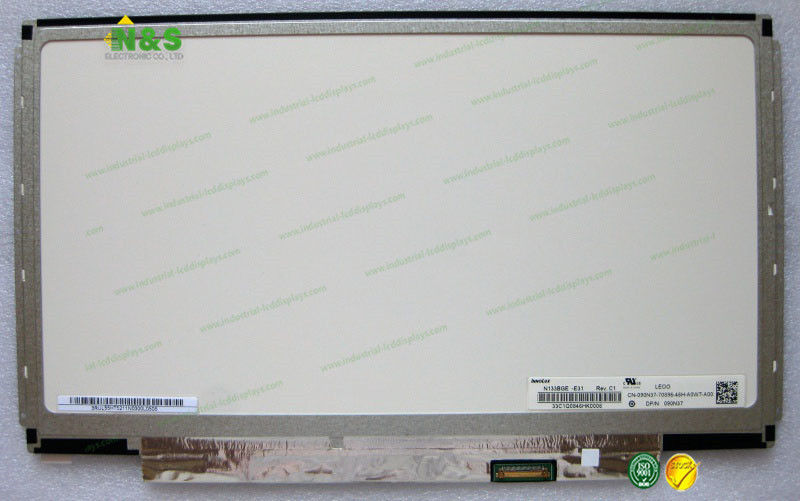

Normally White N133BGE-E31 Innolux LCD Panel Replacement With Full Viewing Angle

Normally White N133BGE-E31 Innolux LCD Panel Replacement With Full Viewing Angle
Normally White N133BGE-E31 Innolux LCD Panel Replacement With Full Viewing Angle

Large Image :  Normally White N133BGE-E31 Innolux LCD Panel Replacement With Full Viewing Angle

Product Details:
Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N133BGE-E31
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

Normally White N133BGE-E31 Innolux LCD Panel Replacement With Full Viewing Angle

Description
Panel Size: 13.3 Inch Resolution: 1366×768
Active Area: 293.42×164.97 Mm Contrast Ratio: 400:1 (Typ.)
Frequency: 60Hz Surface: Antiglare, Hard Coating (3H)
High Light:

tft lcd display

,

innolux lcd screen

Normally White N133BGE-E31 INNOLUX 13.3 inch, 1366×768 Surface Antiglare, Hard coating (3H)



N133BGE-E31 Basic Information

Panel Model N133BGE-E31
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,13.3 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C


N133BGE-E31 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 118 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0716×0.2148 mm (H×V)
Pixel Pitch 0.2148×0.2148 mm (H×V)
Weight 265/280g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 293.42×164.97 mm (H×V)
Bezel Area 296.82×168.37 mm (H×V)
Outline Dimension 314.1×188.75 mm (H×V)
Outline Depth 3.3/3.6 (Typ./Max.) mm
Shape Style Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets Face mounting holes (4 pcs) on left, right brackets
Landscape or Portrait Landscape type
Touch Panel Without


N133BGE-E31 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 8/8 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.43 (Typ./Max.)(5 points)
Sunlight Readable N



Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days
