Product Details:
|
| Panel Brand: | INNOLUX | Panel Model: | N133BGE-EB1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Resolution: | 1366×768 |
| Frequency: | 60Hz | ||
| High Light: | tft lcd display,lcd display panel |
||

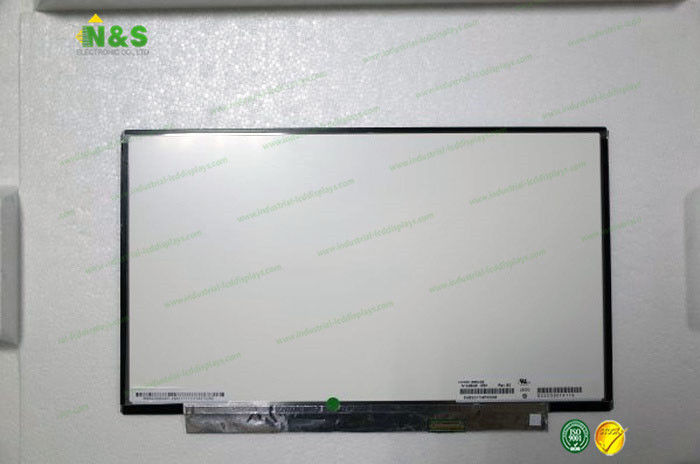

Normally White N133BGE-EB1 INNOLUX 13.3 inch 1366×768 resolution Outline 306.3×189.15×2.85 mm Frequency 60Hz
N133BGE-EB1 Basic Information
| Panel Model | N133BGE-EB1 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,13.3 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N133BGE-EB1 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 118 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0716×0.2148 mm (H×V) |
| Pixel Pitch | 0.2148×0.2148 mm (H×V) |
| Weight | 224.5/240.0g (Typ./Max.) |
| Surface | Hard coating (3H) |
| Active Area | 293.42×164.97 mm (H×V) |
| Bezel Area | 296.42×167.97 mm (H×V) |
| Outline Dimension | 306.3×189.15 mm (H×V) |
| Outline Depth | 2.67/2.85 (Typ./Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
N133BGE-EB1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 650 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.55/1.67 (Typ./Max.)(13 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V236BJ1-P03 | Innolux | 23.6" | 1366×768 |
| PH035NA-01B | Innolux | 3.5" | 320×480 |
| PH040NA-01B | Innolux | 4.0" | 480×800 |
| PH045NA-01A | Innolux | 4.5" | 480×854 |
| PH045NA-01B | Innolux | 4.5" | 480×854 |
| PB050IA-01A | Innolux | 5.0" | 540×960 |
| ZE065NA-01B | Innolux | 6.5" | 800×480 |
| ZE050NA-08D | Innolux | 5.0" | 640×480 |
| N070ICN-PB1 | Innolux | 7.0" | 800×1280 |
| N156BGE-P41 | Innolux | 15.6" | 1366×768 |
| V500HJ1-PE8 | Innolux | 50" | 1920×1080 |
| V400HJ6-PE1 | Innolux | 40" | 1920×1080 |
