Product Details:
|
Panel Size: | 17.3 Inch | Resolution: | 1600×900 |
---|---|---|---|
Active Area: | 382.08×214.92 Mm | Outline: | 398.1×232.8×5.8 Mm |
Contrast Ratio: | 650:1 (Typ.) | Frequency: | 60Hz |
High Light: | tft lcd display,innolux lcd screen |

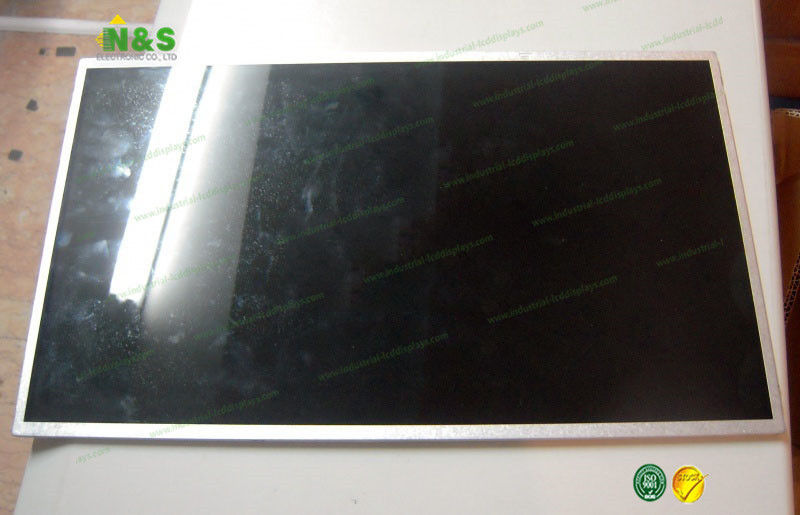

Normally White N173FGE-L23 17.3 inch INNOLUX 1600×900 Outline 398.1×232.8×5.8 mm Frequency 60Hz
N173FGE-L23 Basic Information
Panel Model | N173FGE-L23 |
Panel Brand | CHIMEI INNOLUX |
Descrition | a-Si TFT-LCD ,17.3 inch, 1600×900 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
N173FGE-L23 Mechanical Features
Dot Resolution | 1600(RGB)×900 (HD+) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 106 PPI |
Aspect Ratio | 16:9 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.0796×0.2388 mm (H×V) |
Pixel Pitch | 0.2388×0.2388 mm (H×V) |
Weight | 540/555g (Typ./Max.) |
Surface | Glare (Haze 0%), Hard coating (3H) |
Active Area | 382.08×214.92 mm (H×V) |
Bezel Area | 386.88×218.32 mm (H×V) |
Outline Dimension | 398.1×232.8 mm (H×V) |
Outline Depth | 5.5/5.8 (Typ./Max.) mm |
Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
N173FGE-L23 Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 220 cd/m² (Typ.) |
Contrast Ratio | 650 : 1 (Typ.) (Transmissive) |
Display Color | 262K (6-bit) |
Color Gamut | 60% NTSC (CIE1931) |
Response Time | 3/7 (Typ.)(Tr/Td) |
Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | 6 o'clock |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.11/1.25 (Typ.)(5/13 points) |
Sunlight Readable | N |
