Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Lamp Type: | WLED |
| High Light: | lcd display panel,innolux lcd screen |
||

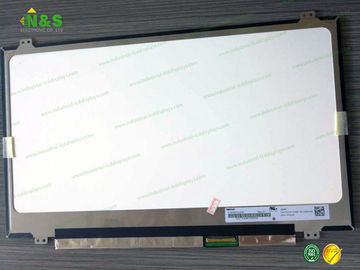

N140BGN-E42 14.0 inch 1366×768 Display Mode TN, Normally White, Transmissive Lamp Type WLED
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Packing & Delivery for our LCD Screen Panel Replacements:

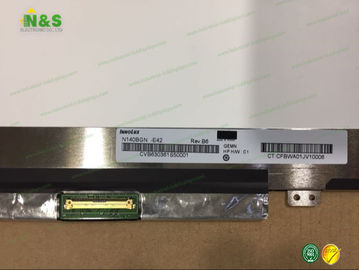

N140BGN-E42 Basic Information
| Panel Model | N140BGN-E42 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Remarks | eDP1.2 |
N140BGN-E42 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Form Factor | Flat Rectangle Display |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (Projected Capacitive Touch, On-Cell) |
N140BGN-E42 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Color Gamut | 45% NTSC (CIE1931) |
| Sunlight Readable | N |
N140BGN-E42 Backlight System
| Lamp Position | Edge light type |
| Lamp Type | WLED |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HE080IA-01D | Innolux | 8.0" | 1024×768 |
| HE070IA-04F | Innolux | 7.0" | 800×1280 |
| N173FGE-P23 | Innolux | 17.3" | 1600×900 |
| N116BGE-P32 | Innolux | 11.6" | 1366×768 |
| N116BGE-P42 | Innolux | 11.6" | 1366×768 |
| M220ZGE-P01 | Innolux | 22.0" | 1680×1050 |
| V236BJ1-P01 | Innolux | 23.6" | 1366×768 |
| CT024TN01 V.X | Innolux | 2.4" | 240×320 |
| M215HGE-P02 | Innolux | 21.5" | 1920×1080 |
| F03003-05L | Innolux | 3.0" | 320×240 |
| EE027NA-02A | Innolux | 2.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
