Normally White Innolux LCD Panel 17.3 inch N173HGE-E11 1920×1080 resolution

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

Normally White Innolux LCD Panel 17.3 inch N173HGE-E11 1920×1080 resolution

Normally White Innolux LCD Panel 17.3 inch N173HGE-E11 1920×1080 resolution
Normally White Innolux LCD Panel 17.3 inch N173HGE-E11 1920×1080 resolution

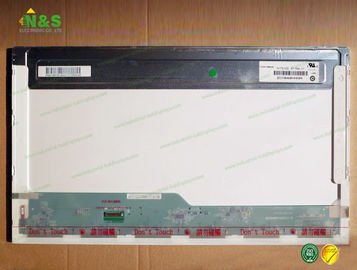

Large Image :  Normally White Innolux LCD Panel 17.3 inch N173HGE-E11 1920×1080 resolution

Product Details:
Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N173HGE-E11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

Normally White Innolux LCD Panel 17.3 inch N173HGE-E11 1920×1080 resolution

Description
Panel Type: A-Si TFT-LCD Panel Size: 17.3 Inch
Resolution: 1920×1080 Surface: Antiglare, Hard Coating (3H)
Contrast Ratio: 400:1 (Typ.) Frequency: 60Hz
High Light:

tft lcd display

,

innolux lcd screen

Normally White 17.3 inch N173HGE-E11 1920×1080 resolution Contrast Ratio 400:1 (Typ.) Frequency 60Hz



N173HGE-E11 Basic Information

Panel Model N173HGE-E11
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,17.3 inch, 1920×1080
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks eDP1.2


Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.



N173HGE-E11 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 127 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0663×0.1989 mm (H×V)
Pixel Pitch 0.1989×0.1989 mm (H×V)
Weight 555/570g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 381.888×214.812 mm (H×V)
Bezel Area 386.18×218.85 mm (H×V)
Outline Dimension 398.1×232.8 mm (H×V)
Outline Depth 5.5/5.8 (Typ./Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


N173HGE-E11 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 300 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 72% NTSC (CIE1931)
Response Time 2/6 (Typ.)(Tr/Td)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N


Our service

1. Agent Brand:

* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

2. Quality to be guaranteed:

* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

3. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

4. long-term partner:

* Products are sold to more than 20 countries.

5. Super After-Sale service:

* One year warranty .

6. The best TFT LCD solution:

*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M236HGE-P02 Innolux 23.6" 1920×1080
M215HGE-P03 Innolux 21.5" 1920×1080
V236H3-PS1 Innolux 23.6" 1920×1080
HE050NA-01F Innolux 5.0" 800×480
M236HGE-P01 Innolux 23.6" 1920×1080
M215HGE-P01 Innolux 21.5" 1920×1080
AT070TN90 Innolux 7.0" 800×480
PH030NA-04A Innolux 3.0" 240×400
EE090NA-01C Innolux 9.0" 1280×800
EE080NA-06A Innolux 8.0" 800×600
AT080TN60 Innolux 8.0" 800×480
