15.6 inch Innolux LCD Panel , LCD Digital Displaye RGB Vertical Stripe N156BGE-EA2

15.6 inch Innolux LCD Panel , LCD Digital Displaye RGB Vertical Stripe N156BGE-EA2
15.6 inch Innolux LCD Panel , LCD Digital Displaye RGB Vertical Stripe N156BGE-EA2

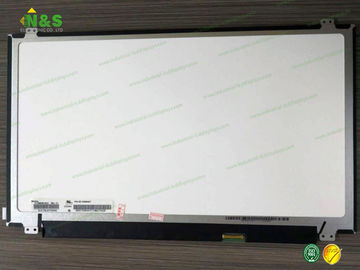

Large Image :  15.6 inch Innolux LCD Panel , LCD Digital Displaye RGB Vertical Stripe N156BGE-EA2

Product Details:
Place of Origin: Japan,Korea
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N156BGE-EA2
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

15.6 inch Innolux LCD Panel , LCD Digital Displaye RGB Vertical Stripe N156BGE-EA2

Description
Panel Type: A-Si TFT-LCD Panel Size: 15.6 Inch
Resolution: 1366×768 Active Area: 344.232×193.536 Mm
Outline: 359.5×223.8×3.2 Mm Surface: Antiglare, Hard Coating (3H)
Contrast Ratio: 500:1 (Typ.) Frequency: 60Hz
High Light:

lcd display panel

,

innolux lcd screen

N156BGE-EA2 15.6 inch 1366×768 Active Area 344.232×193.536 mm Display Colors Outline 359.5×223.8×3.2 mm



N156BGE-EA2 Basic Information

Panel Model N156BGE-EA2
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,15.6 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks eDP1.2


N156BGE-EA2 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 100 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.084×0.252 mm (H×V)
Pixel Pitch 0.252×0.252 mm (H×V)
Weight 355/360g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 344.232×193.536 mm (H×V)
Bezel Area 347.36×196.84 mm (H×V)
Outline Dimension 359.5×223.8 mm (H×V)
Outline Depth 3.0/3.2 (Typ./Max.) mm
Shape Style Slim (PCBA Flat, Depth ≤3.2mm)
Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait Landscape type
Touch Panel Without


N156BGE-EA2 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 3/7 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
V650HP1-PS6 Rev.C1 Innolux 65" 1920×1080
M220ZGE-P02 Innolux 22.0" 1680×1050
V420HJ2-P01 Innolux 42" 1920×1080
F05501-01Z Innolux 5.5" 720×1280
EE101IA-01D Innolux 10.1" 1280×800
HE070IA-02E Innolux 7.0" 1280×800
HE101NA-02C Innolux 10.1" 1280×800
ZE090NA-01B Innolux 9.0" 1280×800
HE080NA-04I Innolux 8.0" 1024×768
HE070NA-13C Innolux 7.0" 1024×600
HE070NA-13B Innolux 7.0" 1024×600

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
