Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Outline: | 344.232×193.536 Mm |
| Contrast Ratio: | 600:1 (Typ.) | Frequency: | 60Hz |
| High Light: | tft lcd display,innolux lcd screen |
||

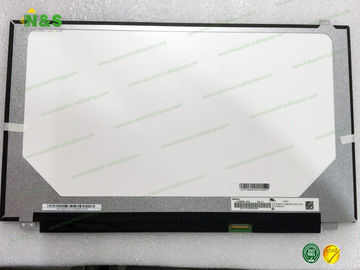

N156BGE-E42 15.6 inch TFT LCD MODULE new and original 1366×768 resolution Normally White
N156BGE-E42 Basic Information
| Panel Model | N156BGE-E42 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
N156BGE-E42 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 365/380g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 344.232×193.536 mm (H×V) |
| Bezel Area | 347.36×196.59 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.3/3.6 (Typ.Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N156BGE-E42 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F050A13-603 | Innolux | 5.0" | 720×1280 |
| V500DK2-QS1 | Innolux | 50" | 3840×2160 |
| M270HGE-P01 | Innolux | 27.0" | 1920×1080 |
| V850DK1-QS1 Rev.C1 | Innolux | 85" | 3840×2160 |
| V580DK1-QS2 | Innolux | 58" | 3840×2160 |
| CP047BN01 | Innolux | 4.7" | 720×1280 |
| PH040NA-01C | Innolux | 4.0" | 480×800 |
| HE080IA-06B | Innolux | 8.0" | 800×1280 |
| V580DK2-QS1 | Innolux | 58" | 3840×2160 |
| P101JEA-3Z1 | Innolux | 10.1" | 1920×1200 |
| P101DBZ-3Z1 | Innolux | 10.1" | 800×1280 |
