Normally Black 7.0 inch Hitachi LCD Panel 800×480 resolution Active Area 152.4×91.44 mm TX18D35VM0AAA

Normally Black 7.0 inch Hitachi LCD Panel 800×480 resolution Active Area 152.4×91.44 mm TX18D35VM0AAA
Normally Black 7.0 inch Hitachi LCD Panel 800×480 resolution Active Area 152.4×91.44 mm TX18D35VM0AAA

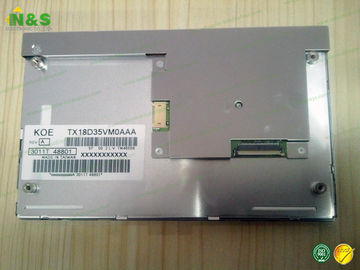

Large Image :  Normally Black 7.0 inch Hitachi LCD Panel 800×480 resolution Active Area 152.4×91.44 mm TX18D35VM0AAA

Product Details:
Place of Origin: Japan,Korea
Brand Name: HITACHI
Certification: ISO9001
Model Number: TX18D35VM0AAA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

Normally Black 7.0 inch Hitachi LCD Panel 800×480 resolution Active Area 152.4×91.44 mm TX18D35VM0AAA

Description
Panel Type: A-Si TFT-LCD Panel Size: 7.0 Inch
Resolution: 800×480 Active Area: 152.4×91.44 Mm
Outline: 165×104×13.3 Mm Contrast Ratio: 600:1 (Typ.)
Display Colors: 262K (6-bit)
High Light:

monochrome lcd panel

,

hitachi lcd screen

Normally Black TX18D35VM0AAA 7.0 inch 800×480 resolution Active Area 152.4×91.44 mm Outline 165×104×13.3 mm



TX18D35VM0AAA Basic Information

Panel Model TX18D35VM0AAA
Panel Brand HITACHI
Descrition a-Si TFT-LCD ,7.0 inch, 800×480
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -40 ~ 90 °C
Vibration Resistance 5.0G (49.0 m/s²)
Remarks Rugged+


TX18D35VM0AAA Mechanical Features

Dot Resolution 800(RGB)×480 (WVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 133 PPI
Aspect Ratio 15:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0635×0.1905 mm (H×V)
Pixel Pitch 0.1905×0.1905 mm (H×V)
Weight 260g (Typ.)
Active Area 152.4×91.44 mm (H×V)
Bezel Area 155.8×94.74 mm (H×V)
Outline Dimension 165×104 mm (H×V)
Outline Depth 8.5/13.3 (Typ./Max.) mm
Holes & Brackets Rear mounting holes (4-M3) on pole
Landscape or Portrait Landscape type
Touch Panel Without


TX18D35VM0AAA Optical Features

Display Mode IPS Pro, Normally Black, Transmissive
Brightness 450 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 45 (Max.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.320; Wy:0.340
White Variation 1.43 (Max.)(9 points)
Sunlight Readable N


Below are our other LCD panels stock for your easy reference:

X546DLB01.0 AUO 5.5" 1080×1920
H546DLB01.1 AUO 5.5" 1080×1920
E499HAM1 EDO 5.0" 720×1280
H429ALN01 V0 AUO 4.3" 540×960
AE320480C0FET00 AMPIRE 3.5" 320×480
H139BLN01.1 AUO 1.39" 400×400
AMS499QP89-0 Samsung 5.0" 1080×1920
AMS529BY03 Samsung 5.3" 1080×1920
M595HBU1 EDO 6.0" 720×1280
M499HBU1 EDO 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



TX18D35VM0AAA Backlight System

Lamp Position Edge light type
Lamp Type WLED
Lamp Amount 3S4P
Lamp Life Time 70K(Typ.) (Hours)
Interface Type Connector
Lamp Driver Board 4.56W (Typ.)
