Product Details:
|
| Panel Type: | STN-LCD | Panel Size: | 5.1 Inch |
|---|---|---|---|
| Resolution: | 240×128 | Contrast Ratio: | 7:1 (Typ.) |
| Display Colors: | Monochrome | Frequency: | 75Hz |
| High Light: | monochrome lcd panel,hitachi lcd screen |
||

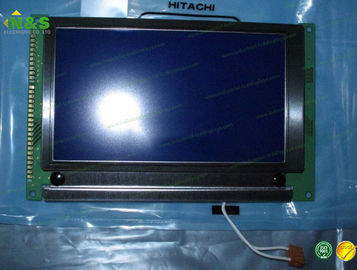

Blue mode SP14N003 TFT LCD Module 5.1 inch,resolution 240×128 Surface Antiglare, Hard coating (3H)
SP14N003 Basic Information
| Panel Model | SP14N003 |
| Panel Brand | HITACHI |
| Descrition | STN-LCD ,5.1 inch, 240×128 |
| Panel Type | STN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
SP14N003 Mechanical Features
| Dot Resolution | 240×128 |
| Pixel Configuration | Rectangle |
| Pixel Density | 50 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.50×0.50 mm (H×V) |
| Pixel Pitch | 0.50×0.50 mm (H×V) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 119.97×63.97 mm (H×V) |
| Bezel Area | 124.0×70.0 mm (H×V) |
| Outline Dimension | 159.4×101 mm (H×V) |
| Outline Depth | 7.7/11.0 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.0) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
SP14N003 Optical Features
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Brightness | 90 cd/m² (Typ.) |
| Contrast Ratio | 7 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 160/110 (Typ.)(Tr/Td) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White Variation | 1.30 (Max.)(9 points) |
| Sunlight Readable | N |
