Product Details:
|
| Panel Model: | SX19V007-Z2A | Panel Type: | CSTN-LCD |
|---|---|---|---|
| Panel Size: | 7.5 Inch | Resolution: | 640×480 |
| Display Colors: | Color | Frequency: | 100Hz |
| High Light: | monochrome lcd panel,hitachi lcd screen |
||
Normally Black SX19V007-Z2A 7.5 inch resolution 640×480 Response Time 300/250 (Typ.)(Tr/Td) Frequency 100Hz

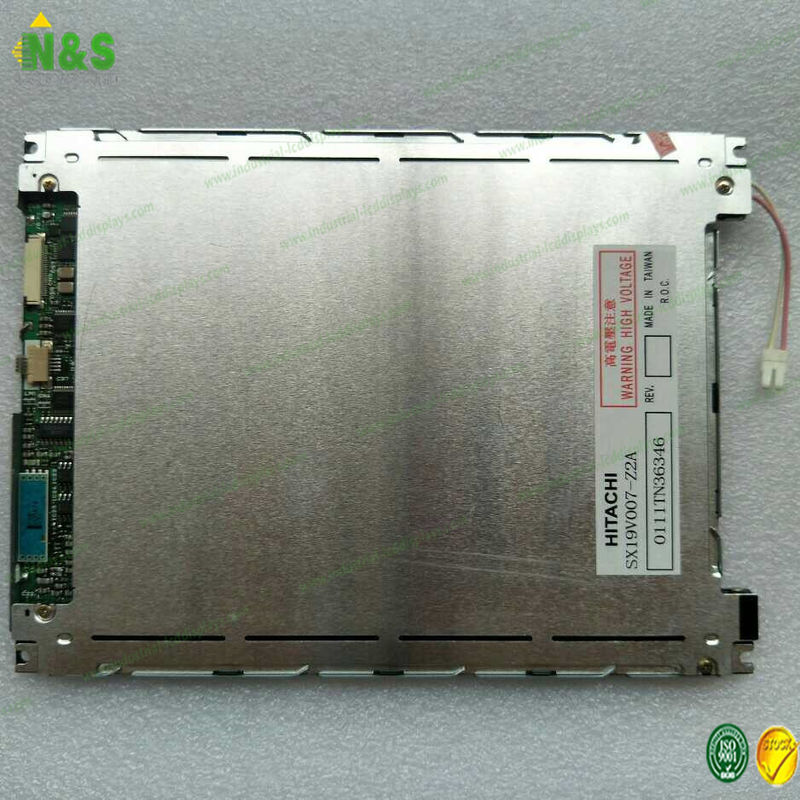

SX19V007-Z2A Basic Information
| Panel Model | SX19V007-Z2A |
| Panel Brand | HITACHI |
| Descrition | CSTN-LCD ,7.5 inch, 640×480 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 5 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
SX19V007-Z2A Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 107 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.079×0.237 mm (H×V) |
| Pixel Pitch | 0.237×0.237 mm (H×V) |
| Weight | 350g (Typ.) |
| Active Area | 151.657×113.737 mm (H×V) |
| Bezel Area | 158.5×118.0 mm (H×V) |
| Outline Dimension | 197×145 mm (H×V) |
| Outline Depth | 9.8 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.2, 2-R1.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
SX19V007-Z2A Optical Features
| Display Mode | STN, Normally Black, Transmissive |
| Brightness | 70 cd/m² (Typ.) |
| Contrast Ratio | 40 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 300/250 (Typ.)(Tr/Td) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.280; Wy:0.300 |
| Sunlight Readable | N |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
