Product Details:
|
Panel Model: | LB170E01-SL01 | Panel Type: | A-Si TFT-LCD |
---|---|---|---|
Active Area: | 337.92×270.336 Mm | Outline: | 368×306×14.8 Mm |
Frequency: | 60Hz | Input Voltage: | 5.0V (Typ.) |
High Light: | lg display panel,lg lcd display |

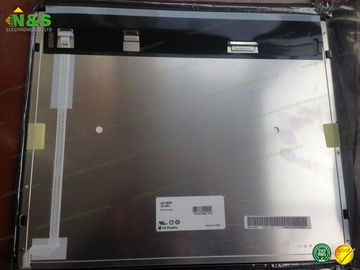

Normally Black LB170E01-SL01 17.0 inch, 1280×1024 Surface Antiglare, Hard coating (3H) Frequency 60Hz
LB170E01-SL01 Basic Information
Panel Model | LB170E01-SL01 |
Panel Brand | LG Display |
Descrition | a-Si TFT-LCD ,17.0 inch, 1280×1024 |
Panel Type | a-Si TFT-LCD |
Model Alias | LB170E01 (SL)(01) |
Operating Temperature | -10 ~ 70 °C |
Storage Temperature | -20 ~ 80 °C |
LB170E01-SL01 Mechanical Features
Dot Resolution | 1280(RGB)×1024 (SXGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 96 PPI |
Aspect Ratio | 5:4 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.088×0.264 mm (H×V) |
Pixel Pitch | 0.264×0.264 mm (H×V) |
Weight | 1.26Kgs (Typ.) |
Surface | Antiglare, Hard coating (3H) |
Active Area | 337.92×270.336 mm (H×V) |
Bezel Area | 341.5×274.6 mm (H×V) |
Outline Dimension | 368×306 mm (H×V) |
Outline Depth | 14.8 (Max.) mm |
Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
LB170E01-SL01 Optical Features
Display Mode | IPS, Normally Black, Transmissive |
Brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 72% NTSC (CIE1931) |
Response Time | 13/9 (Typ.)(Tr/Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | Symmetry |
White color Chromaticity | Wx:0.310; Wy:0.338 |
White Variation | 1.33 (Max.)(9 points) |
Sunlight Readable | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
