Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 26.0 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Active Area: | 575.769×323.712 Mm |
| Outline: | 613×361 Mm | Frequency: | 60Hz |
| High Light: | lg lcd display,lg replacement screen |
||

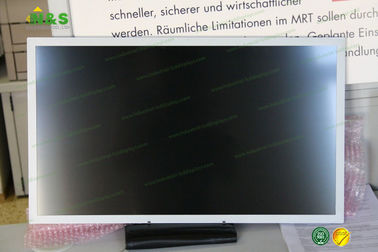

LC260EUN-SCA1 Basic Information
| Panel Model | LC260EUN-SCA1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,26.0 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LC260EUN (SC)(A1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LC260EUN-SCA1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 84 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.100×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 2.75/2.90Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 10%), Hard coating (3H) |
| Active Area | 575.769×323.712 mm (H×V) |
| Bezel Area | 580.2×328.2 mm (H×V) |
| Outline Dimension | 613×361 mm (H×V) |
| Outline Depth | 14.9 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LC260EUN-SCA1 Optical Features
| Display Mode | S-IPS, Normally Black, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 68% NTSC (CIE1931) |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.272; Wy:0.292 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
