Product Details:
|
Panel Model: | LM240WU8-SLA2 | Panel Type: | A-Si TFT-LCD |
---|---|---|---|
Panel Size: | 24.0 Inch | Resolution: | 1920×1200 |
Active Area: | 518.4×324 Mm | Outline: | 546.4×352×15 Mm |
High Light: | lg display panel,lg replacement screen |

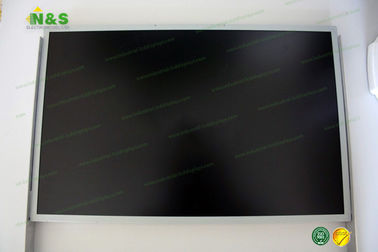

Normally Black LM240WU8-SLA2 24.0 inch Outline 546.4×352×15 mm Surface Antiglare, Hard coating (3H)
LM240WU8-SLA2 Basic Information
Panel Model | LM240WU8-SLA2 |
Panel Brand | LG Display |
Descrition | a-Si TFT-LCD ,24.0 inch, 1920×1200 |
Panel Type | a-Si TFT-LCD |
Model Alias | LM240WU8 (SL)(A2) |
Operating Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
LM240WU8-SLA2 Mechanical Features
Dot Resolution | 1920(RGB)×1200 (WUXGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 94 PPI |
Aspect Ratio | 16:10 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.090×0.270 mm (H×V) |
Pixel Pitch | 0.270×0.270 mm (H×V) |
Weight | 2.37/2.49Kgs (Typ./Max.) |
Surface | Antiglare, Hard coating (3H) |
Active Area | 518.4×324 mm (H×V) |
Bezel Area | 522.4×328.0 mm (H×V) |
Outline Dimension | 546.4×352 mm (H×V) |
Outline Depth | 10.5/15.0 (Typ./Max.) mm |
Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
LM240WU8-SLA2 Optical Features
Display Mode | UH-IPS, Normally Black, Transmissive |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (6-bit + Hi-FRC) |
Color Gamut | 72% NTSC (CIE1931) |
Response Time | 14 (Typ.)(G to G) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | Symmetry |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.33 (Max.)(9 points) |
Sunlight Readable | N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
