Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Resolution: | 1440×900 | Active Area: | 408.24×255.15 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Contrast Ratio: | 1000:1 (Typ.) |
| High Light: | lg lcd display,lg replacement screen |
||

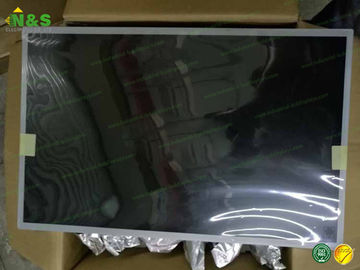

LM190WX2-TLK1 TFT-LCD Module 19.0 inch 1440×900 TN, Normally White, Transmissive Surface Antiglare, Hard coating (3H)
LM190WX2-TLK1 Basic Information
| Panel Model | LM190WX2-TLK1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1440×900 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LM190WX2 (TL)(K1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LM190WX2-TLK1 Mechanical Features
| Dot Resolution | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 89 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch | 0.2835×0.2835 mm (H×V) |
| Weight | 1.40/1.47Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 408.24×255.15 mm (H×V) |
| Bezel Area | 412.2×259.0 mm (H×V) |
| Outline Dimension | 428×278 mm (H×V) |
| Outline Depth | 8.6/10.7 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LM190WX2-TLK1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC650EQK-FGK5 | LG Display | 65" | 3840×2160 |
| LB164WH1-SJA1 | LG Display | 16.4" | 1366×238 |
| LH550QH1-SH01 | LG Display | 5.5" | 1440×2560 |
| LC420EGY-SGM1 | LG Display | 42" | 3840×2160 |
| LC430DUY-SHA1 | LG Display | 43" | 1920×1080 |
| LD079X02-SHA1 | LG Display | 7.9" | 768×1024 |
| LH550WF2-SH01 | LG Display | 5.5" | 1080×1920 |
| LC490EGY-SHM1 | LG Display | 49" | 3840×2160 |
| LC550DUJ-SGE3 | LG Display | 55" | 1920×1080 |
| LC490DUJ-SGE3 | LG Display | 49" | 1920×1080 |
