Product Details:
|
| Panel Size: | 15.6 Inch | Active Area: | 344.16×193.59 Mm |
|---|---|---|---|
| Resolution: | 1600×900 | Outline: | 359.3×209.5×5.7 Mm |
| High Light: | lg lcd display,lg replacement screen |
||

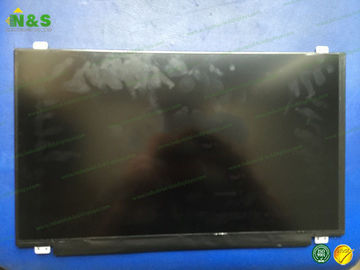

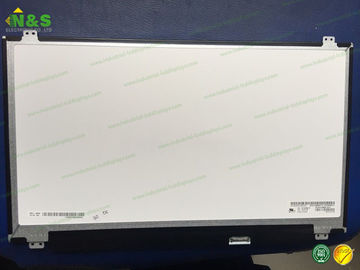

LP156WD1-TLB3 Basic Information
| Panel Model | LP156WD1-TLB3 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1600×900 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP156WD1 (TL)(B3) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | For TECRA A11/S11/P11/Satellite Pro S500 Series Notebook |
LP156WD1-TLB3 Mechanical Features
| Dot Resolution | 1600(RGB)×900 (HD+) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 118 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0717×0.2151 mm (H×V) |
| Pixel Pitch | 0.2151×0.2151 mm (H×V) |
| Weight | 450/470g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 344.16×193.59 mm (H×V) |
| Bezel Area | 349.8×197.1 mm (H×V) |
| Outline Dimension | 359.3×209.5 mm (H×V) |
| Outline Depth | 5.7 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LP156WD1-TLB3 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 65/65/55/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White Variation | 1.60 (Max.)(13 points) |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
