Product Details:
|
Panel Brand: | LG Display | Panel Model: | LP156UD1-SPA2 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD | Outline: | 344.448×193.752 Mm |
Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
High Light: | lg display panel,lg replacement screen |

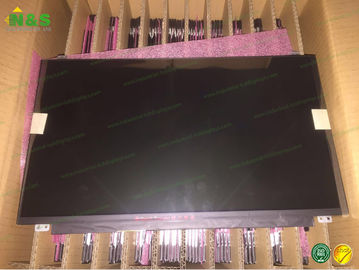

Normally Black LP156UD1-SPA2 high resoluton 3840×2160 Outline 359.5×223.8×2.9 mm Frequency 60Hz
LP156UD1-SPA2 Basic Information
Panel Model | LP156UD1-SPA2 |
Panel Brand | LG Display |
Descrition | a-Si TFT-LCD ,15.6 inch, 3840×2160 |
Panel Type | a-Si TFT-LCD |
Model Alias | LP156UD1 (SP)(A2) |
Operating Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
LP156UD1-SPA2 Mechanical Features
Dot Resolution | 3840RG(BW)×2160 (UHD) |
Pixel Configuration | RG(BW) PenTile |
Pixel Density | 283 PPI |
Aspect Ratio | 16:9 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.04485×0.08970 mm (H×V) |
Pixel Pitch | 0.08970×0.08970 mm (H×V) |
Weight | 305g (Max.) |
Surface | Glare (Haze 0%), Hard coating (3H) |
Active Area | 344.448×193.752 mm (H×V) |
Bezel Area | 347.75×197.05 mm (H×V) |
Outline Dimension | 359.5×223.8 mm (H×V) |
Outline Depth | 2.9 (Max.) mm |
Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
LP156UD1-SPA2 Optical Features
Display Mode | IPS, Normally Black, Transmissive |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 72% NTSC (CIE1931) |
Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | Symmetry |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.40/1.60 (Max.)(5/13 points) |
Sunlight Readable | N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LD070WX7-SH01 | LG Display | 7.0" | 800×1280 |
LD070WS2-SH02 | LG Display | 7.0" | 1024×600 |
LA070WV1-TH01 | LG Display | 7.0" | 800×480 |
LH550WX1-SH02 | LG Display | 5.5" | 720×1280 |
LD079X01-SHC4 | LG Display | 7.9" | 768×1024 |
LH470WX3-SH01 | LG Display | 4.7" | 720×1280 |
LC550EUJ-FFK1 | LG Display | 55" | 1920×1080 |
LH520WF1-SH01 | LG Display | 5.2" | 1080×1920 |
LC490DUJ-SGK1 | LG Display | 49" | 1920×1080 |
LC490DUJ-SGE1 | LG Display | 49" | 1920×1080 |
