Product Details:
|
| Panel Type: | A-Si TFT-LCD | Active Area: | 153.6×90 Mm |
|---|---|---|---|
| Outline: | 162.8×102.9×4.17 Mm | Surface: | Hard Coating (3H) |
| Panel Size: | 7.0 Inch | Resolution: | 1024×600 |
| High Light: | lg lcd display,lg replacement screen |
||

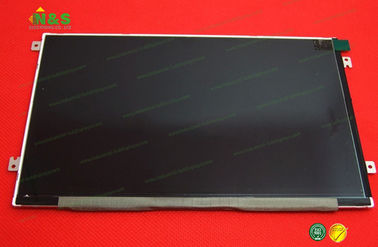

LD070WS2-SL05 LG Display a-Si TFT-LCD ,7.0 inch, 1024×600 Display Colors 262K (6-bit) Active Area 245.7×184.275 mm
LD070WS2-SL05 Basic Information
| Panel Model | LD070WS2-SL05 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,7.0 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LD070WS2 (SL)(05) |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
| Remarks | Nichia LED/S-LED |
LD070WS2-SL05 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 169 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.050×0.150 mm (H×V) |
| Pixel Pitch | 0.150×0.150 mm (H×V) |
| Weight | 94/98g (Typ./Max.) |
| Surface | Hard coating (3H) |
| Active Area | 153.6×90 mm (H×V) |
| Outline Dimension | 162.8×102.9 mm (H×V) |
| Outline Depth | 2.47/4.17 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ1.8) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Company information:
About Us:
N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
LD070WS2-SL05 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time | 50 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.310; Wy:0.340 |
| White Variation | 1.25/1.43 (Typ./max.)(9 points) |
| Sunlight Readable | N |
