Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Active Area: | 344.232×193.536 Mm |
| Outline: | 359.3×209.5×5.5 Mm | Display Mode: | TN, Normally White, Transmissive |
| High Light: | lg lcd display,lg replacement screen |
||

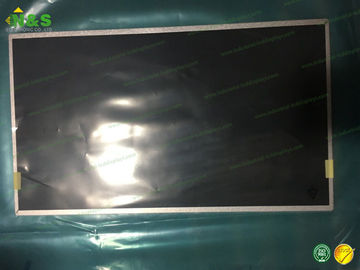

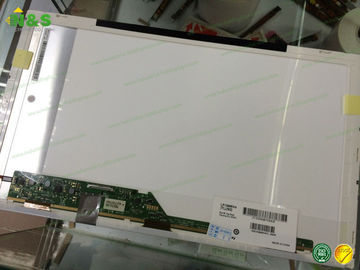

LP156WH4-TLN2 15.6 inch Outline 359.3×209.5×5.5 mm Lamp Type 4 strings WLED Embedded (LED Driver)
LP156WH4-TLN2 Basic Information
| Panel Model | LP156WH4-TLN2 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP156WH4 (TL)(N2) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LP156WH4-TLN2 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 420g (Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 344.232×193.536 mm (H×V) |
| Bezel Area | 350.0×197.1 mm (H×V) |
| Outline Dimension | 359.3×209.5 mm (H×V) |
| Outline Depth | 5.5 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TL050JYXP02-00 | Tianma | 5.0" | 720×1280 |
| N156BGE-PA1 | Innolux | 15.6" | 1366×768 |
| T430HVN01.0 CELL | AUO | 43" | 1920×1080 |
| T320HVN05.6 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.3 CELL | AUO | 31.5" | 1920×1080 |
| T195XVN01.0 CELL | AUO | 19.5" | 1366×768 |
| BP080WX7-101 | BOE | 8.0" | 800×1280 |
| CLAF055WB41 TXX | CPT | 5.5" | 720×1280 |
| CLAF047LB41 TXX | CPT | 4.7" | 540×960 |
