Product Details:
|
| Panel Brand: | SAMSUNG | Descrition: | A-Si TFT-LCD |
|---|---|---|---|
| Display Mode: | Normally White | Active Area: | 428×278×10.3 Mm |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

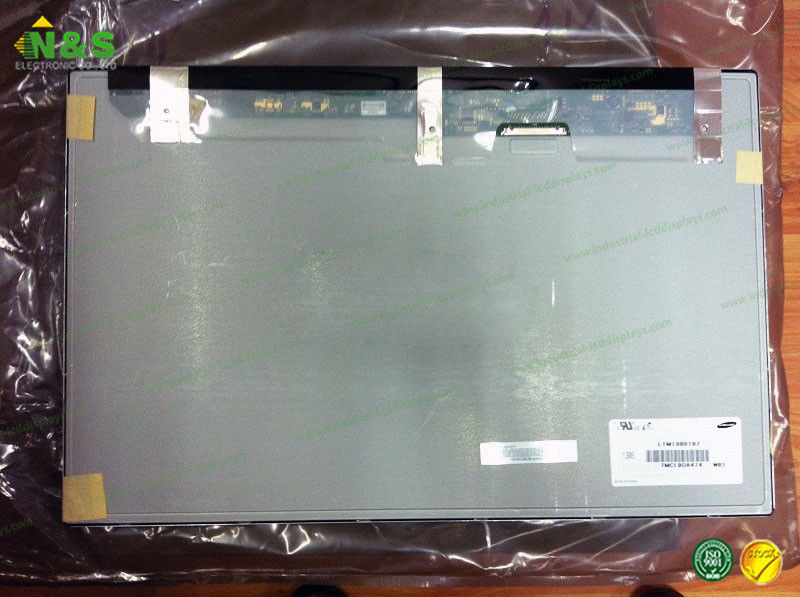

1440×900 19.0 inch Industrial LCD Displays Normally White LTM190BT07 60Hz
LTM190BT07 Basic Information
| Panel Model | LTM190BT07 |
| Panel Brand | SAMSUNG |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1440×900 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
| Remarks | TC0’5.0 Compliance |
LTM190BT07 Mechanical Features
| Dot Resolution | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 89 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch | 0.2835×0.2835 mm (H×V) |
| Weight | 1.60Kgs (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 408.24×255.15 mm (H×V) |
| Bezel Area | 412.2×259.2 mm (H×V) |
| Outline Dimension | 428×278 mm (H×V) |
| Outline Depth | 10.3 (Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
