Product Details:
|
| Panel Type: | A-Si TFT-LCD | Active Area: | 337.92×270.336 Mm |
|---|---|---|---|
| Outline: | 354.9×290.3×13.3 Mm | Frequency: | 60Hz |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

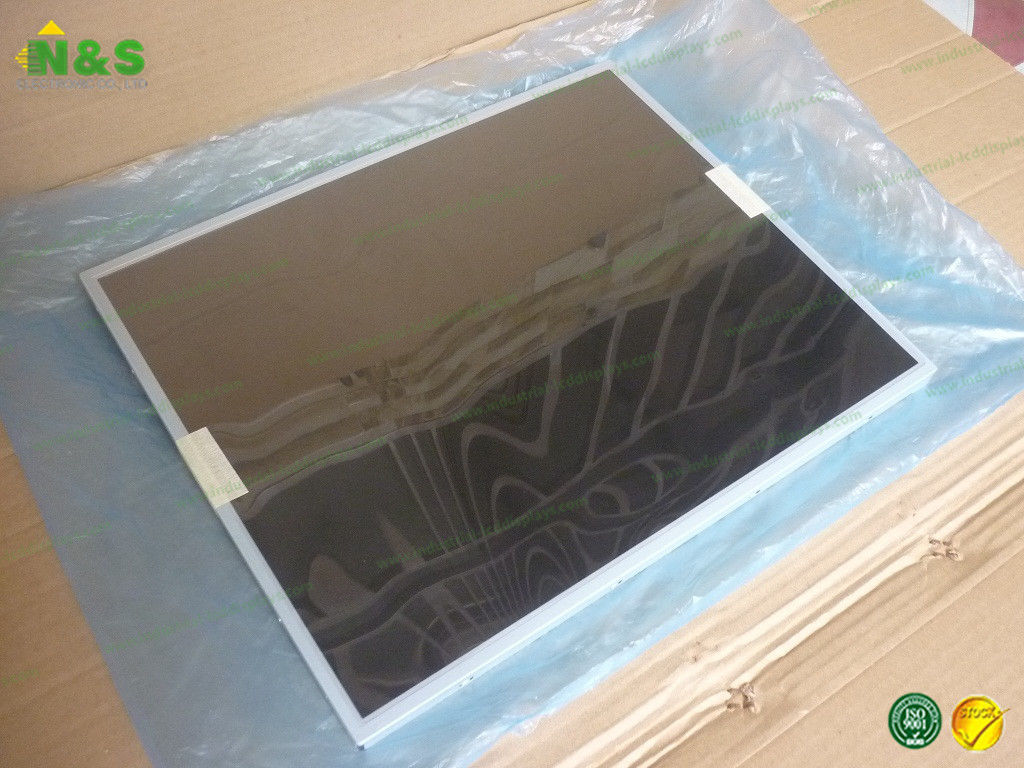

Normally Black LTM170E8-L02 17.0 inch 337.92×270.336 mm Active Area for Outdoor high Brightness
LTM170E8-L02 Basic Information
| Panel Model | LTM170E8-L02 |
| Panel Brand | SAMSUNG |
| Descrition | a-Si TFT-LCD ,17.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 65 °C |
LTM170E8-L02 Mechanical Features
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 1.70Kgs (Max.) |
| Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Active Area | 337.92×270.336 mm (H×V) |
| Bezel Area | 340.92×273.336 mm (H×V) |
| Outline Dimension | 354.9×290.3 mm (H×V) |
| Outline Depth | 12.8±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS497DX12-0 | Samsung | 5.0" | 720×1280 |
| AMS163AN01 | Samsung | 1.63" | 320×320 |
| AMS510CV02 | Samsung | 5.1" | 1080×1920 |
| AMS510CV01 | Samsung | 5.1" | 1080×1920 |
| AMS302AK03 | Samsung | 3.0" | 720×480 |
| AMS353FD01-0 | Samsung | 3.5" | 480×800 |
| AMS499QP89-0 | Samsung | 5.0" | 1080×1920 |
| AMS529BY03 | Samsung | 5.3" | 1080×1920 |
| SDC 1.63 320×320 | Samsung | 1.63" | 320×320 |
| AMS499QP42-0 | Samsung | 5.0" | 1080×1920 |
| AMS529BY01 | Samsung | 5.3" | 1080×1920 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
