12.1 inch LT104V3-100 Samsung LCD Panel with 211.2×158.4 mm Active Area resolution 640×480

12.1 inch LT104V3-100 Samsung LCD Panel with 211.2×158.4 mm  Active Area resolution 640×480
12.1 inch LT104V3-100 Samsung LCD Panel with 211.2×158.4 mm  Active Area resolution 640×480 12.1 inch LT104V3-100 Samsung LCD Panel with 211.2×158.4 mm  Active Area resolution 640×480

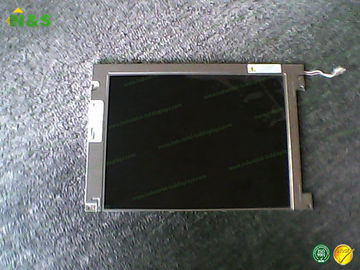

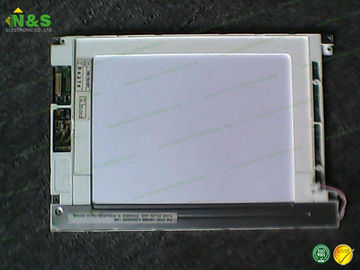

Large Image :  12.1 inch LT104V3-100 Samsung LCD Panel with 211.2×158.4 mm Active Area resolution 640×480

Product Details:
Place of Origin: KOREA
Brand Name: SAMSUNG
Certification: ISO9001
Model Number: LT104V3-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

12.1 inch LT104V3-100 Samsung LCD Panel with 211.2×158.4 mm Active Area resolution 640×480

Description
Panel Size: 12.1 Inch Resolution: 640×480
Active Area: 211.2×158.4 Mm Outline: 264×180 Mm
Contrast Ratio: 100:1 (Min.) Frequency: 60Hz
High Light:

samsung lcd screen

,

samsung lcd panel replacement

New and original in stock 12.1 inch LT104V3-100 SAMSUNG with 211.2×158.4 mm Active Area resolution 640×480



LT104V3-100 Basic Information

Panel Model LT104V3-100
Panel Brand SAMSUNG
Descrition a-Si TFT-LCD ,10.4 inch, 640×480
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -25 ~ 60 °C


LT104V3-100 Mechanical Features

Dot Resolution 640(RGB)×480 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 76 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.110×0.330 mm (H×V)
Pixel Pitch 0.330×0.330 mm (H×V)
Weight 500g (Typ.)
Active Area 211.2×158.4 mm (H×V)
Outline Dimension 264×180 mm (H×V)
Outline Depth 9.3 mm
Landscape or Portrait Landscape type
Touch Panel Without


LT104V3-100 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 70 cd/m² (Typ.)
Contrast Ratio 100 : 1 (Min.) (Transmissive)
Display Color 262K (6-bit)
Response Time 20/40 (Typ.)(Tr/Td)
Viewing Angle 48/48/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.314; Wy:0.327
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N


Company Strength:

1>ISO9001 certificated.

2> Competitive Price and Short Lead-time

3> Professional Team with Rich Experiences in LCD Screen International trade.

4> Small MOQ Support & Fast Response to Customers

5> Long Product Life Time

6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.

7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.

8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.



Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS470GS16-1 Samsung 4.7" 720×1280
AMS367PE10 Samsung 3.7" 480×800
AMS397GE61-1 Samsung 4.0" 480×800
AMS427GL41-0 Samsung 4.3" 480×800
AMS427GL45-0 Samsung 4.3" 480×800
AMS767KC04-1 Samsung 7.7" 1280×800
AMS395GB04 Samsung 4.0" 360×640
AMS410GC01-0 Samsung 4.1" 480×800
AMS370FG Samsung 3.7" 480×800
AMS465GS16-1 Samsung 4.7" 720×1280
AMS427GL34-1 Samsung 4.3" 480×800
AMS767KC06 Samsung 7.7" 1280×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
