Product Details:
|
| Panel Size: | 17.0 Inch | Resolution: | 1280×1024 |
|---|---|---|---|
| Active Area: | 337.92×270.336 Mm | Outline: | 358.5×296.5×17.5 Mm |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

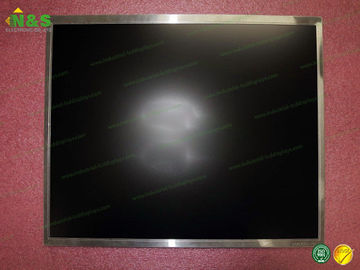

Normally White LTM170EU-L21 SAMSUNG 17.0 inch with 337.92×270.336 mm Active Area Antiglare (Haze 25%), Hard coating (3H)
LTM170EU-L21 Basic Information
| Panel Model | LTM170EU-L21 |
| Panel Brand | SAMSUNG |
| Descrition | a-Si TFT-LCD ,17.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
| Remarks | DE (Data Enable) mode |
LTM170EU-L21 Mechanical Features
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | TBD |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 337.92×270.336 mm (H×V) |
| Bezel Area | 341.6×274.016 mm (H×V) |
| Outline Dimension | 358.5×296.5 mm (H×V) |
| Outline Depth | 17.0±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT141DEVEP00 | TOSHIBA | 14.1" | 1280×800 |
| LT121DEVCN00 | TOSHIBA | 12.1" | 1280×800 |
| LTM024DB40 | TOSHIBA | 2.4" | 240×320 |
| LTM022A97B | TOSHIBA | 2.2" | 240×320 |
| LT043MDQ6000 | TOSHIBA | 4.3" | 480×272 |
| TFD58W30MM | TOSHIBA | 5.8" | 400×234 |
| LT111EE06000 | TOSHIBA | 11.1" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTM170EU-L21 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/75/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
