Product Details:
|
| Panel Type: | IGZO TFT-LCD | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 2560*1600 | Surface: | Clear, Hard Coating |
| Contrast Ratio: | 900:1 (Typ.) | Frequency: | 60Hz |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

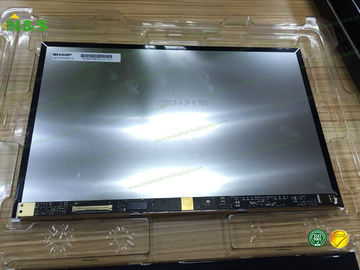

LQ101R1SX01A 10.1 inch, high resolution 2560*1600 Surface Clear, Hard coating Frequency 60Hz new and original
LQ101R1SX01A Basic Information
| Panel Model | LQ101R1SX01A |
| Panel Brand | SHARP |
| Descrition | IGZO TFT-LCD ,10.1 inch, 2560×1600 |
| Panel Type | IGZO TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
LQ101R1SX01A Mechanical Features
| Dot Resolution | 2560(RGB)×1600 (WQXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 299 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.02825×0.08475 mm (H×V) |
| Pixel Pitch | 0.08475×0.08475 mm (H×V) |
| Weight | 151.0±15g |
| Surface | Clear, Hard coating |
| Active Area | 216.96×135.6 mm (H×V) |
| Outline Dimension | 228×148.5 mm (H×V) |
| Outline Depth | 1.88/4.60 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Company information:
About Us:
N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
LQ101R1SX01A Optical Features
| Display Mode | Normally Black, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
Feature:
1) 100% Brand New and never used Touch Screen Digitizer.
2) Tested before shipping and 100% working well.
3) Delivery in 3 working days after payment confirmed.
4) Excellent after-sale service.
5) Great replacements for your LCD panels’ sourcing replenishment.
6) Each screen will be tested before shipping and 100% working guarantee.
Our Services
1. Sample all in one computer is available for your evaluation. The lead time for sample is 5-7days.
2. Fully customizable for the outlook and some functions.
3. 1 year quality warranty, perfect after-sell service.
Our website lists just some of the products we have
successfully supplied,but please note this is just
representative and an example of our products&service,
so,if you cannot see the product you are looking for, please contact us today!!!
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
