Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 101.568×76.176 Mm | Contrast Ratio: | 500:1 (Typ.) |
| High Light: | black and white lcd display,lcd display white screen |
||

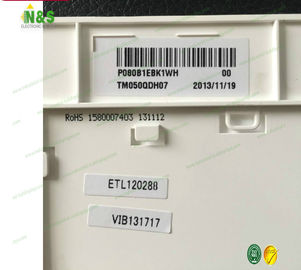

Normally White TM050QDH07 TIANMA 5.0 inch, 640×480 LCD Panel 5.0 inch Active Area 101.568×76.176 mm
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TL050JYXP02-00 | Tianma | 5.0" | 720×1280 |
| N156BGE-PA1 | Innolux | 15.6" | 1366×768 |
| T430HVN01.0 CELL | AUO | 43" | 1920×1080 |
| T320HVN05.6 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.3 CELL | AUO | 31.5" | 1920×1080 |
| T195XVN01.0 CELL | AUO | 19.5" | 1366×768 |
| BP080WX7-101 | BOE | 8.0" | 800×1280 |
| CLAF055WB41 TXX | CPT | 5.5" | 720×1280 |
| CLAF047LB41 TXX | CPT | 4.7" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
TM050QDH07 Basic Information
| Panel Model | TM050QDH07 |
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,5.0 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
TM050QDH07 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 160 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0529×0.1587 mm (H×V) |
| Pixel Pitch | 0.1587×0.1587 mm (H×V) |
| Active Area | 101.568×76.176 mm (H×V) |
| Holes & Brackets | Face mounting holes (4-Φ3.4) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
