Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Panel Model: | NL6448BC33-54K |
| High Light: | nec tft lcd,nec lcd screen |
||

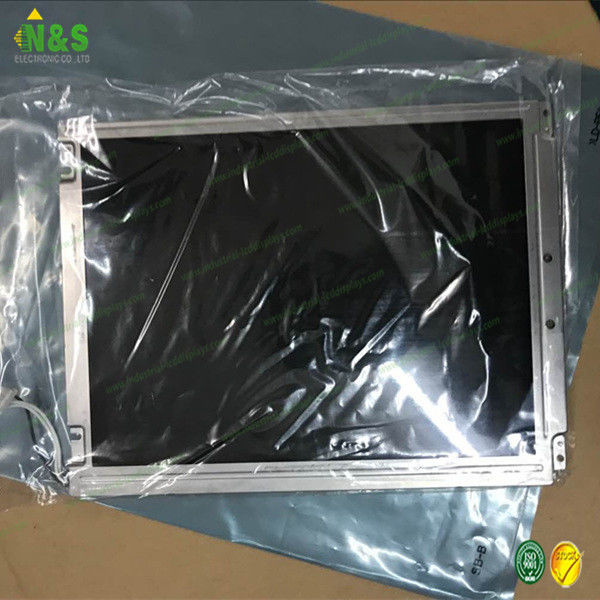

NL6448BC33-54K 10.4 inch NEC LCD Panel New and original
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
NL6448BC33-54 Basic Information
| Panel Model | NL6448BC33-54 |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
NL6448BC33-54 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 465/490g (Typ./Max.) |
| Surface | Clear, Hard coating (3H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dimension | 243×185.1 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
| Panel Model | Brand | Size | Resolution |
| M215HJJ-P02 | Innolux | 21.5" | 1920×1080 |
| M200HJJ-P01 | Innolux | 19.5" | 1920×1080 |
| HSD050FHW3-D00-T00 | HannStar | 5.0" | 720×1280 |
| S57001A112G56C1T5 | Laibao | 5.7" | 480×320 |
| TPF0501008P | JDI | 5.0" | 720×1280 |
| TL050JYXP02-00 | Tianma | 5.0" | 720×1280 |
| N156BGE-PA1 | Innolux | 15.6" | 1366×768 |
| T430HVN01.0 CELL | AUO | 43" | 1920×1080 |
| T320HVN05.6 CELL | AUO | 31.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
