Product Details:
|
Panel Size: | 10.4 Inch | Panel Type: | A-Si TFT-LCD |
---|---|---|---|
Dot Resolution: | 640(RGB)×480 (VGA) | Aspect Ratio: | 4:3 (H:V) |
High Light: | industrial lcd screen,industrial lcd panel |

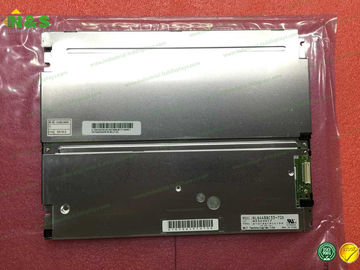

Normally White NL6448BC33-70D 10.4 inch 640×480 Outline 243×185.1×11 mm Contrast Ratio 900:1 (Typ.) new and original
NL6448BC33-70D Basic Information
Panel Model | NL6448BC33-70D |
Panel Brand | NEC |
Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -30 ~ 80 °C |
Storage Temperature | -30 ~ 80 °C |
Vibration Resistance | 2.0G (19.6 m/s²) |
NL6448BC33-70D Mechanical Features
Dot Resolution | 640(RGB)×480 (VGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 76 PPI |
Aspect Ratio | 4:3 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.110×0.330 mm (H×V) |
Pixel Pitch | 0.330×0.330 mm (H×V) |
Weight | 475/500g (Typ./Max.) |
Surface | Antiglare, Hard coating (3H) |
Active Area | 211.2×158.4 mm (H×V) |
Bezel Area | 215.4×161.8 mm (H×V) |
Outline Dimension | 243×185.1 mm (H×V) |
Outline Depth | 10.5±0.5 mm |
Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
