12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm

12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm
12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm 12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm

Large Image :  12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: G121SN01 V4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm

Description
Panel Model: G121SN01 V4 Panel Size: 12.1 Inch
Resolution: 800(RGB)×600 , SVGA Display Mode: TN, Normally White, Transmissive
Active Area: 246×184.5 Mm Outline: 279×209 Mm
High Light:

auo display panel

,

auo lcd display

AUO 12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm Normally White New and original

Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5.Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
X139BLB01.0 AUO 1.39" 400×400
H381DLN01.0 AUO 3.8" 1080×1200
H497TLB01.4 AUO 5.0" 720×1280
H163QLN01.0 AUO 1.63" 320×320
H139BLN01.2 AUO 1.39" 400×400
H500TLB01.0 AUO 5.0" 720×1280
X546DLB01.0 AUO 5.5" 1080×1920
H546DLB01.1 AUO 5.5" 1080×1920

Pls contact to us for more stock information: salespm@nselectronic.com.hk

G121SN01 V4 Specification

Panel Model G121SN01 V4
Panel Brand AUO
Descrition a-Si TFT-LCD ,12.1 inch, 800×600
Panel Type a-Si TFT-LCD
Display Mode TN, Normally White, Transmissive
Active Area 246×184.5 mm
Outline 279×209 mm
Surface Antiglare, Hard coating (3H)
Contrast Ratio 700:1 (Typ.)
Display Colors 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 55%
Response Time 25/10 (Typ.)(Tr/Td)
Viewing Angle 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency 60Hz
Lamp Type 9S2P WLED Embedded (LED Driver)
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins
Input Voltage 3.3V (Typ.)

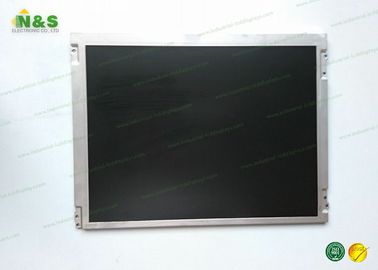

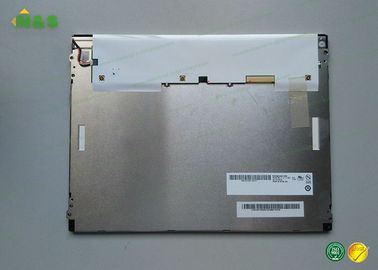

G121SN01 V4 Picture

 12.1 inch G121SN01 V4 TFT LCD Module with 246×184.5 mm 246×184.5 mm 0
