Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 800×600 | Panel Model: | G104SN03 V5 |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | auo display panel,auo lcd screen |
||
10.4 Inch G104SN03 V5 TFT LCD Display Normally White Active Area 211.2×158.4 mm Frequency 60Hz
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
G104SN03 V5 Information
| Panel Model | G104SN03 V5 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 236×176.9×6 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% |
| Response Time | 10/5 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/60/70 (Typ.)(CR=10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3 strings WLED Embedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |

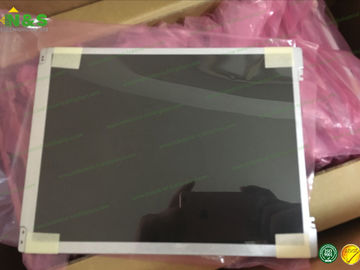

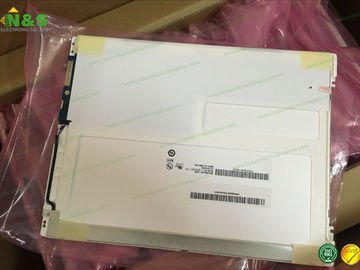

G104SN03 V5 Picture
