Product Details:
|
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) |
|---|---|---|---|
| Display Colors: | 262K (6-bit) , CIE1931 72% | Response Time: | 10/25 (Typ.)(Tr/Td) |
| Lamp Type: | 2 Pcs CCFL | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 32 Pins |
| Nput Voltage: | 3.3/5.0V (Typ.)(VCC) | Panel Brand: | SHARP |
| High Light: | auo lcd screen,auo lcd display |
||
AUO LCD Panel G156HTN02.0 15.6 inch Contrast Ratio 700:1 (Typ.) Frequency 60Hz 344.16×193.59 mm Active Area
AUO G156HTN02.0 General Features
| Panel Model | G156HTN02.0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 363.8×215.9×9.8 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 72% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED Embedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage | 3.3V (Typ.) |
AUO G156HTN02.0 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 0.94/1.10Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 344.16×193.59 mm (H×V) |
| Bezel Area | 347.06×196.49 mm (H×V) |
| Outline Dimension | 363.8×215.9 mm (H×V) |
| Outline Depth | 9.3±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

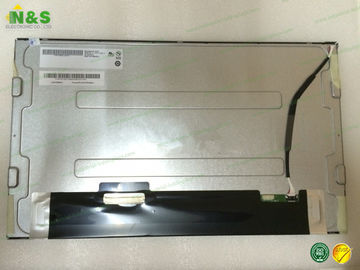

Details Pictures for AUO LCD Panel G156HTN02.0
