NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V) Pixel Pitch

NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V)  Pixel Pitch
NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V)  Pixel Pitch

Large Image :  NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V) Pixel Pitch

Product Details:
Place of Origin: Japan, Korea
Brand Name: Sharp LCD Panel
Certification: ISO9001
Model Number: NL6448BC26-08D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V) Pixel Pitch

Description
Dot Resolution: 640(RGB)×480 (VGA) Panel Type: A-Si TFT-LCD
Aspect Ratio: 4:3 (H:V) Bezel Area: 174.0×131.4 Mm (H×V)
High Light:

nec lcd touch screen

,

nec tft lcd

NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V) Pixel Pitch



Panel Model NL6448BC26-08D
Panel Brand NEC
Descrition a-Si TFT-LCD ,8.4 inch, 640×480
Panel Type a-Si TFT-LCD
Display Mode UA-SFT, Normally Black, Transmissive
Active Area 170.88×128.16 mm
Outline 200×152 mm
Surface Antiglare, Hard coating (3H)
Contrast Ratio 800:1 (Typ.)
Display Colors 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 72%
Response Time 10/10 (Typ.)(Tr/Td)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Frequency 60Hz
Lamp Type 2 pcs CCFL Without Driver
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins
Input Voltage 3.3V (Typ.)


What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.



Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.



LQ043T3DX04 General Features



Dot Resolution 640(RGB)×480 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 95 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.089×0.267 mm (H×V)
Pixel Pitch 0.267×0.267 mm (H×V)
Weight 330/350g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 170.88×128.16 mm (H×V)
Bezel Area 174.0×131.4 mm (H×V)
Outline Dimension 200×152 mm (H×V)
Outline Depth 10.5±0.5 mm
Holes & Brackets Face mounting holes (4-Ф2.8)
Landscape or Portrait Landscape type
Touch Panel Without



We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

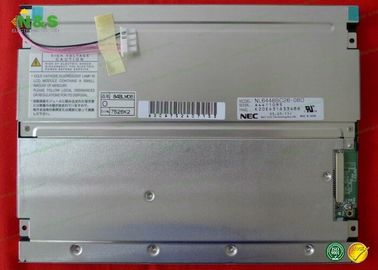

Details Picture for NEC  NL6448BC26-08D



NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V)  Pixel Pitch 0
